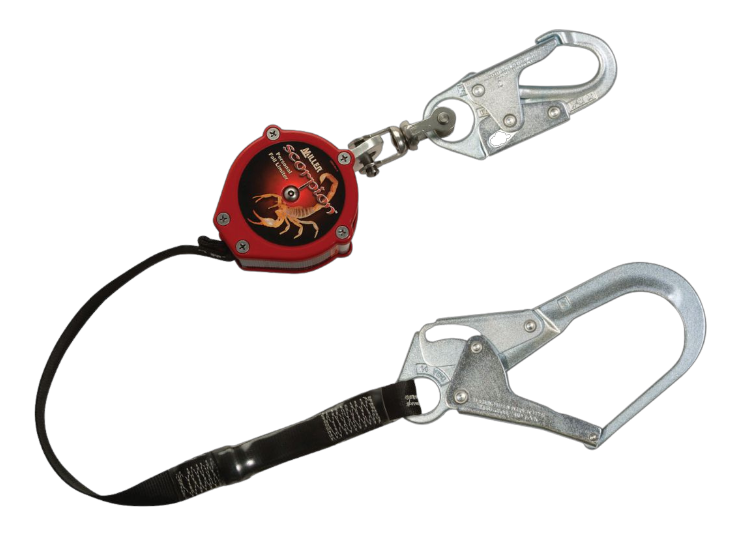

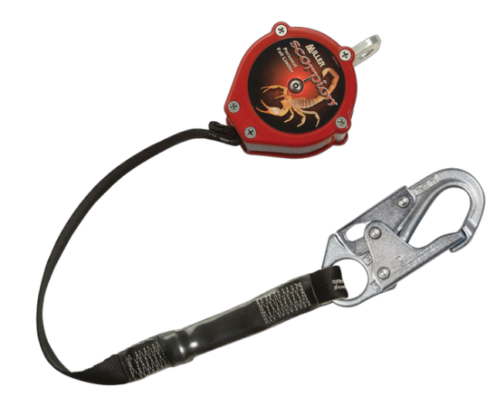

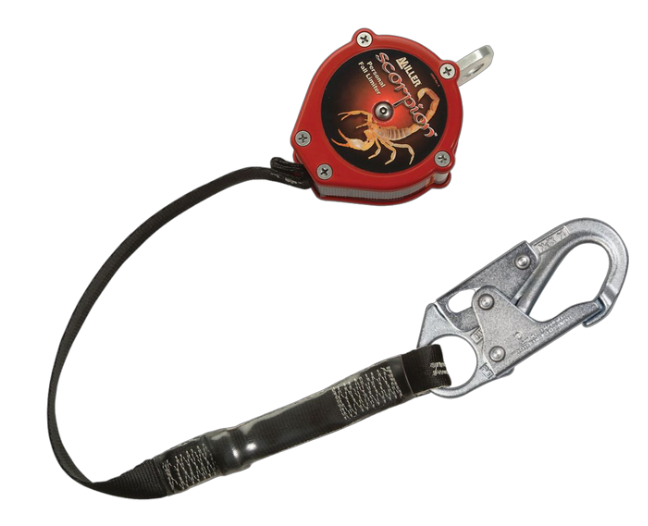

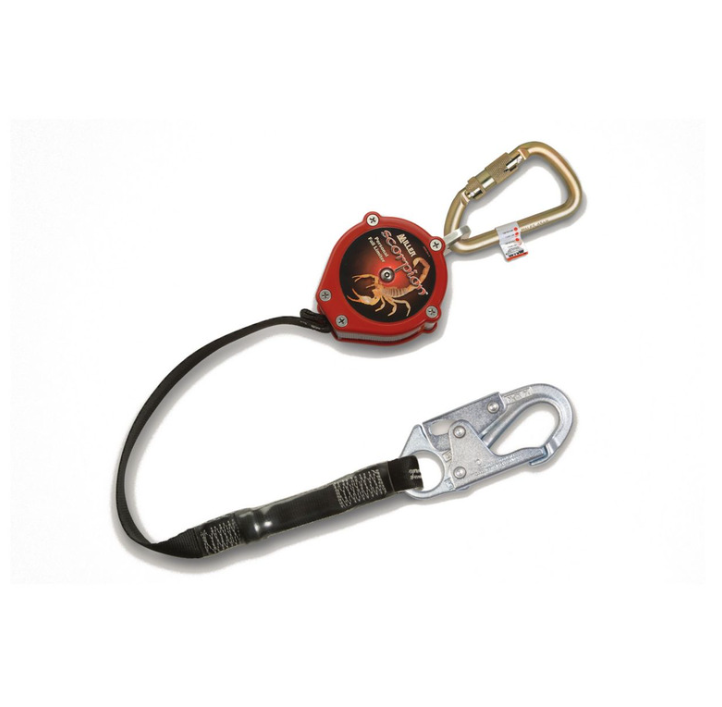

Scorpion Fall Arrestor
- Brand: Honeywell Miller
Lightweight and compact, the Scorpion fall arrestor is a versatile and safe fall protection device designed to limit the free fall distance of the user. With direct harness attachment, a working length of 2.7m and maximum fall arrest force of 8kN, plus a quick-acting braking system that arrests a fall within centimetres, this fall arrestor offers maximum user safety in a variety of applications.
- Australian Standard: AS/NZS1891
Features
Industries
Documents
Features
- Compact and lightweight
- Stainless steel braking system
- Corrosion resistant internal components
- 25mm Polyamide sharp edge rated webbing
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Hire
- Infrastructure
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
PRODUCT CODE | UNIT CONNECTOR | LANYARD END CONNECTOR | NET WEIGHT |
---|---|---|---|
HWPFL-1-Z7/9FT | Nil | Steel locking snap hook | 1.30kg |
HWPFL-2-Z7/9FT | Steel twist-lock karabiner | Steel locking snap hook | 1.60kg |
HWPFL-3-Z7/9FT | Stainless steel swivel shackle | Steel locking snap hook | 1.40kg |
HWPFL-4-Z7/9FT | Steel twist lock karabiner and swivel shackle | Steel locking snap hook | 1.70kg |
HWPFL-5/9FT | D-ring swivel hook | Steel locking snap hook | 1.50kg |
HWPFL-6-Z7/9FT | Steel locking rebar hook and swivel shackle | Steel locking snap hook | 2.00kg |
HWPFL-7-Z7/9FT | Steel locking snap hook and swivel shackle | Steel locking snap hook | 1.70kg |
HWPFL-8/9FT | Captive eye karabiner | Steel locking snap hook | 1.60kg |
HWPFL-9-Z7/9FT | Steel twist lock karabiner and swivel shackle | Steel locking rebar hook | 2.00kg |
HWPFL-10/9FT | D-ring swivel hook | Steel locking rebar hook | 1.80kg |
HWPFL-11-Z7/9FT | Steel locking snap hook and swivel shackle | Steel locking rebar hook | 2.00kg |
HWPFL-12-Z7/9FT | Steel twist lock karabiner and swivel shackle | Steel locking swivel rebar hook | 2.00kg |
HWPFL-13/9FT | D-ring swivel hook | Steel locking swivel rebar hook | 1.90kg |
HWPFL-14-Z7/9FT | Steel locking snap hook and swivel shackle | Steel locking swivel rebar hook | 2.10kg |
HWPFL-15-Z7/9FT | Nil | Steel locking swivel hook | 1.40kg |
HWPFL-16-Z7/9FT | Steel twist lock karabiner | Steel locking swivel hook | 1.70kg |
HWPFL-17/9FT | Nil | Web look for karabiner | 1.04kg |
HWPFL-18-Z7/9FT | Aluminium twist lock karabiner and swivel shackle | Aluminium locking snap hook | 1.60kg |
HWPFL-19-Z7/9FT | Aluminium locking rebar hook and swivel shackle | Aluminium locking snap hook | 1.80kg |
HWPFL-20-Z7/9FT | Aluminium locking snap hook and swivel shackle | Aluminium locking snap hook | 1.70kg |
HWPFL-21-Z7/9FT | Aluminium locking snap hook and swivel shackle | Aluminium locking rebar hook | 1.90kg |
