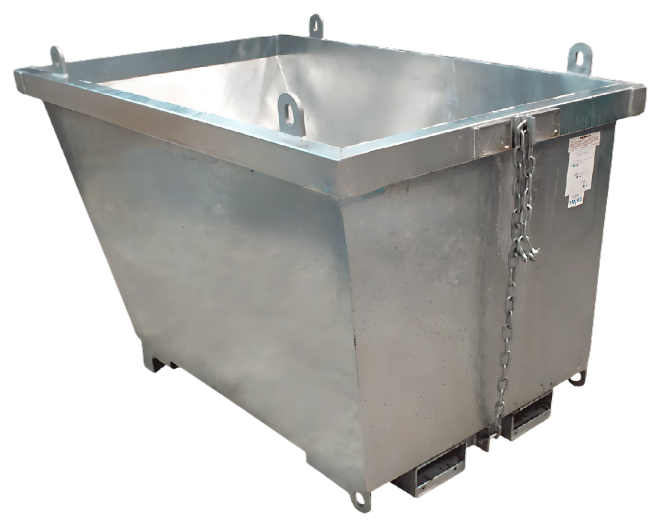

Self Dumping Bin
- Brand: East West Engineering
- Capacity: 1.5t

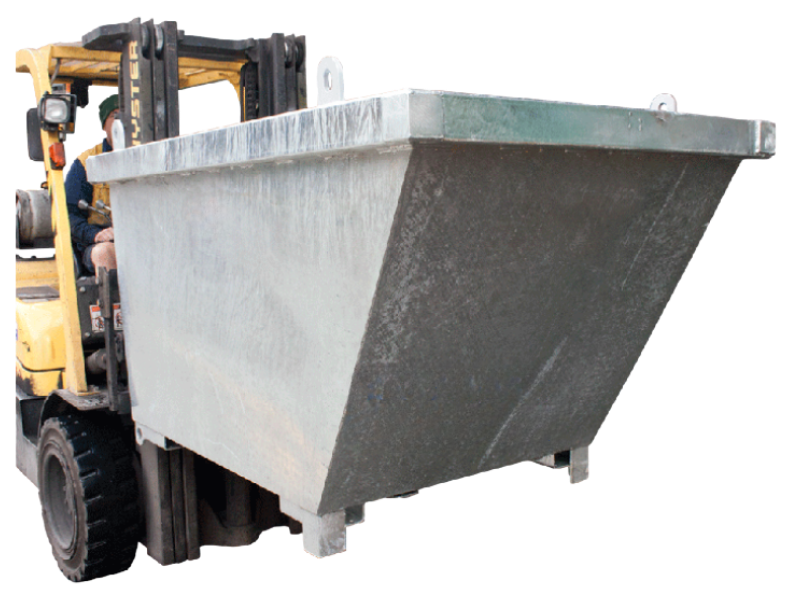

Robust and durable, our Self Dumping Bin is a cost effective solution for the storage and disposal of industrial waste. Featuring a self-dumping mechanism that allows the operator to control the tipping cycle from the driver’s seat and manufactured from 3mm plate with reinforced edges, this self-dumping bin is ideally suited for use with either a forklift or overhead crane. With forklift tines positioned beneath the bin, plus fork pockets and safety chain for easy connection, this bin provides optimal versatility and operator safety.
Features
Industries
Documents
Features
- Drain plug
- Galvanised finish
- Self dumping mechanism
- Four crane lugs and upending lugs
- Fork pockets and safety chain for quick connection
Industries
- Aviation
- Construction
- Civil
- Infrastructure
- Manufacturing
- Warehouse
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | VOLUME CAPACITY | POCKET SIZE | POCKET CENTRES | NET WEIGHT |
---|---|---|---|---|---|
EWEWFH5X74 | 1.5t | 0.35cu.m | 185mm x 70mm | 310mm | 130kg |
EWEWFH5X11 | 1.5t | 0.59cu.m | 185mm x 75mm | 695mm | 155kg |
EWEWFH9X74 | 1.5t | 0.68cu.m | 185mm x 75mm | 310mm | 165kg |
EWEWFH9X11 | 1.5t | 1.10cu.m | 185mm x 75mm | 695mm | 200kg |
EWEWFH9X20 | 1.5t | 2.10cu.m | 185mm x 75mm | 695mm | 260kg |
Dimensions
PRODUCT CODE | LENGTH | WIDTH | HEIGHT |
---|---|---|---|
EWEWFH5X74 | 1510mm | 740mm | 630mm |
EWEWFH5X11 | 1510mm | 1150mm | 630mm |
EWEWFH9X74 | 1715mm | 740mm | 980mm |
EWEWFH9X11 | 1715mm | 1150mm | 980mm |
EWEWFH9X20 | 1715mm | 1986mm | 980mm |
