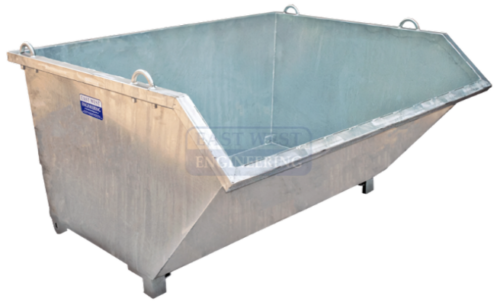

Self Dumping Bin
- Brand: East West Engineering
- Capacity: 1.5t

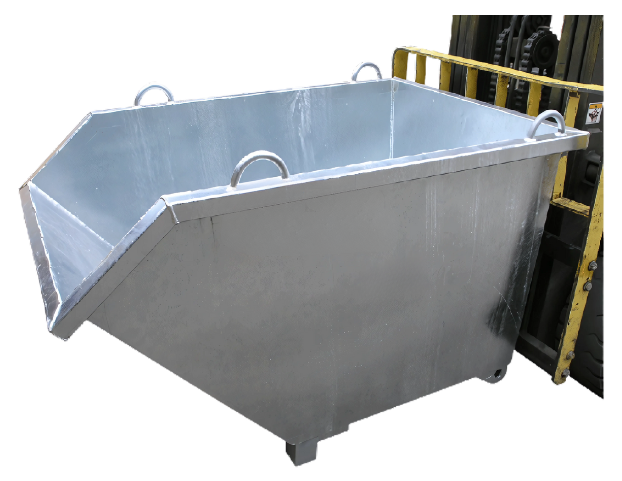

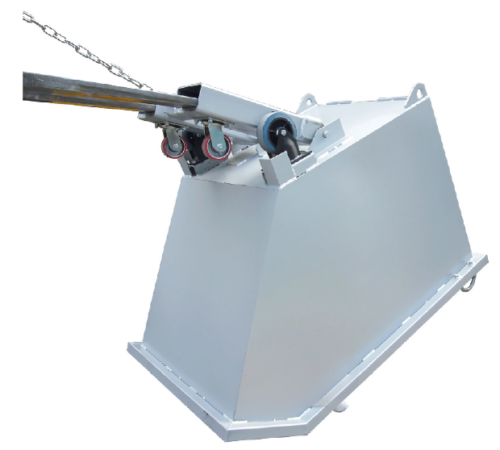

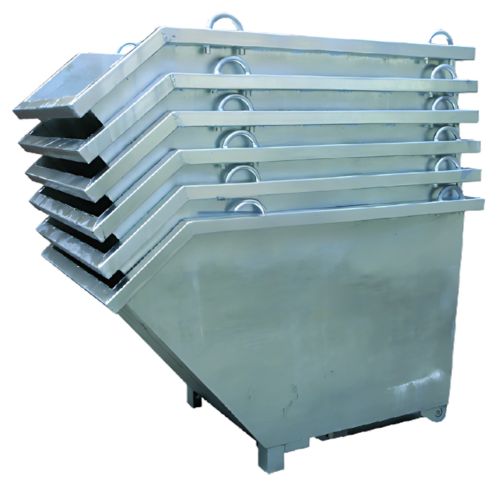

Robust and versatile, this Self Dumping Bin is a cost effective solution for a wide range of waste handling tasks. Designed for easy emptying using a forklift or overhead crane, this bin features a self-dumping mechanism that allows the operator to safely initiate the tipping cycle from the a forklift or crane cabin, as well as a space saving nesting design for efficient transport and storage. Fitted with crane lugs, upending lugs, a drain plug, and wheel brackets, this self dumping bin offers flexible and efficient performance across various applications.
Features
Industries
Documents
Features
- Drain plug
- Galvanised finish
- Self dumping mechanism
- Four crane lugs and upending lugs
Industries
- Aviation
- Construction
- Civil
- Infrastructure
- Manufacturing
- Warehouse
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | VOLUME CAPACITY | POCKET SIZE | POCKET CENTRES | NET WEIGHT |
---|---|---|---|---|---|
EWECSD9 | 1.5t | 0.95cu.m | 185mm x 75mm | 340mm | 180kg |
EWECSD12 | 1.5t | 1.25cu.m | 185mm x 75mm | 630mm | 205kg |
EWECSD18 | 1.5t | 1.85cu.m | 185mm x 75mm | 630mm | 245kg |
Dimensions
PRODUCT CODE | WIDTH | DEPTH | HEIGHT |
---|---|---|---|
EWECSD9 | 1010mm | 1570mm | 1070mm |
EWECSD12 | 1310mm | 1570mm | 1070mm |
EWECSD18 | 1910mm | 1570mm | 1070mm |
