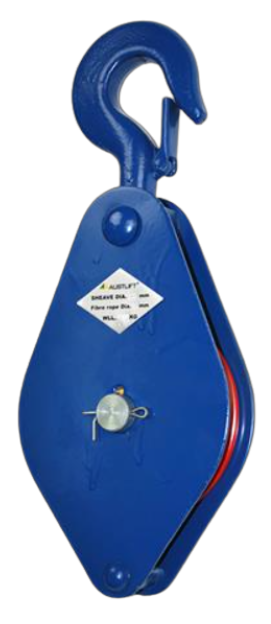

Single Sheave Block
Single Sheave Block
- Capacity: 0.25t to 1.0t
Compact, lightweight and durable, this easy to use single sheave block is specially designed for manual lifting and general hoisting applications. With diameters ranging from 75m to 150mm, and available for use with either fibre or wire rope, this sheave block is fitted with a reliable bronze brush for increased longevity and enhanced performance.
- Australian Standard: AS2089
Features
Industries
Documents
Features
- Test certificate supplied
- Fitted with a bronze bush
- Interchangeable sheave wheel
Industries
- Automotive
- Agriculture
- Civil
- Construction
- Engineering
- Infrastructure
- Manufacturing
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | SIZE | ROPE TYPE | NET WEIGHT |
|---|---|---|---|---|
| AL139075F | 0.25t | 75mm | FIBRE – 12 | 1.2kg |
| AL139075W | 0.25t | 75mm | WIRE – 6 | 1.2kg |
| AL139100F | 0.50t | 100mm | FIBRE – 16 | 2.2kg |
| AL139100W | 0.50t | 100mm | WIRE – 8 | 2.2kg |
| AL139125F | 1.00t | 100mm | FIBRE – 20 | 3.8kg |
| AL139125W | 1.00t | 100mm | WIRE – 10 | 3.8kg |
| AL139150F | 1.00t | 100mm | FIBRE – 24 | 5.2kg |
| AL139150W | 1.00t | 100m | WIRE – 12 | 5.2kg |

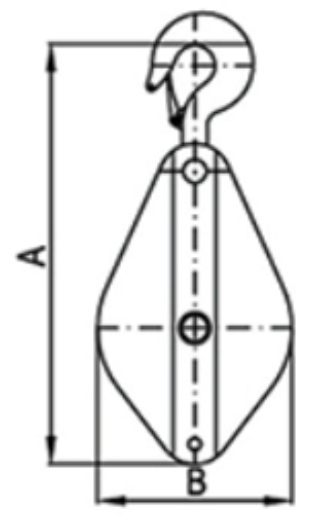

Dimensions
| PRODUCT CODE | A | B | C |
|---|---|---|---|
| AL139075F | 222.4mm | 80.0mm | 40.0mm |
| AL139075W | 222.4mm | 80.0mm | 40.0mm |
| AL139100F | 300.5mm | 108.0mm | 48.5mm |
| AL139100W | 300.5mm | 108.0mm | 48.5mm |
| AL139125F | 346.0mm | 140.0mm | 53.5mm |
| AL139125W | 346.0mm | 140.0mm | 53.5mm |
| AL139150F | 392.0mm | 168.0mm | 60.0mm |
| AL139150W | 392.0mm | 168.0mm | 60.0mm |
