Straight Load Rollers
Straight Load Rollers
- Brand: HESWA
- Capacity: 2.0t - 18.0t

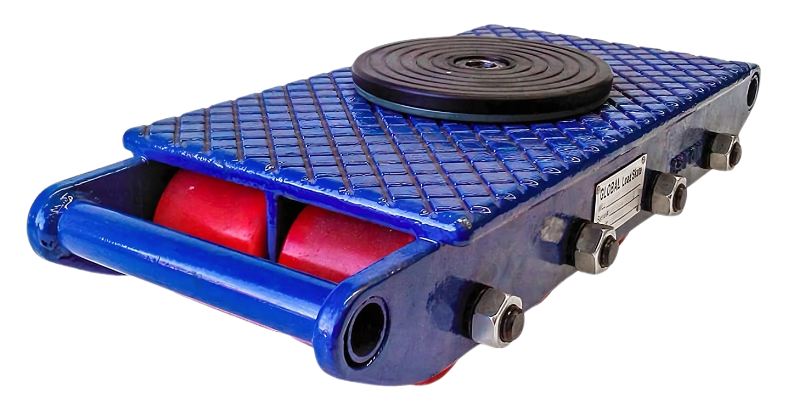

Our Straight Load Rollers are designed to move heavy loads safely and efficiently across flat surfaces. Constructed from heavy-duty materials and including a swivel plate for enhanced manoeuvrability, these straight load rollers offer reliable performance in demanding industrial applications. Nylon rollers ensure smooth operation whilst helping to protect flooring, making them the perfect choice for relocating equipment or machinery with minimal surface impact.
Features
Industries
Documents
Features
- Swivel plate
- Nylon rollers
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
- Warehouse
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NUMBER OF WHEELS | NET WEIGHT |
|---|---|---|---|
| HESWAEZ02 | 2.0t | 8 | 6kg |
| HESWAEZ06 | 6.0t | 4 | 14kg |
| HESWAEZ12 | 12.0t | 8 | 28kg |
| HESWAEZ18 | 18.0t | 12 | 44kg |
Dimensions
| PRODUCT CODE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| HESWAEZ02 | 240mm | 125mm | 110mm |
| HESWAEZ06 | 305mm | 210mm | 112mm |
| HESWAEZ12 | 510mm | 210mm | 112mm |
| HESWAEZ18 | 510mm | 310mm | 112mm |
