Superflex Single Slings
Superflex Single Slings
- Brand: Andromeda Industries
- Capacity: 52kN to 4340kN

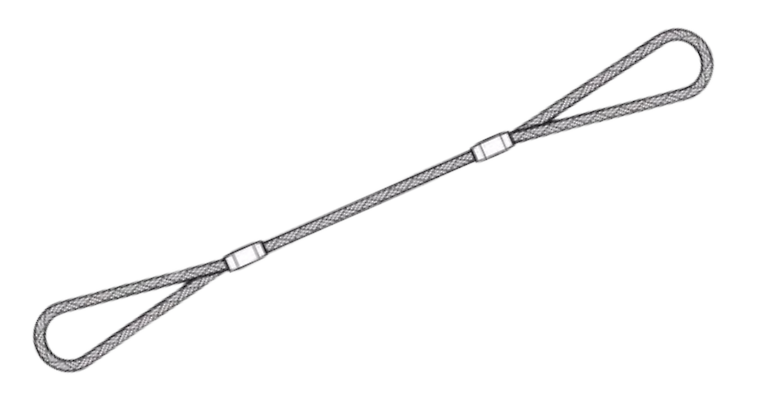

Suitable for general lifting purposes, Superflex Single Slings provide exceptional strength and flexibility. Constructed from a plaited cable containing more wires than standard wire rope, the Superflex Single Slings are easy to position around loads and won’t spring back. All slings are are fitted with aluminium alloy ferrules unless otherwise specified. Upon request, steel ferrules can be supplied up to 32mm.
Features
Industries
Documents
Features
- Minimal spring-back
- Plaited design with high wire count
- Fitted with aluminium alloy ferrules as standard
- Steel ferrules supplied on request, up to 32mm
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Specifications
Dimensions
Specifications

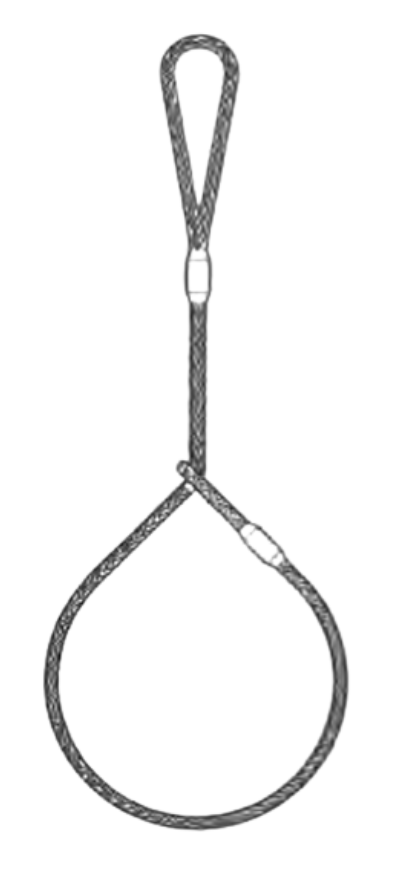

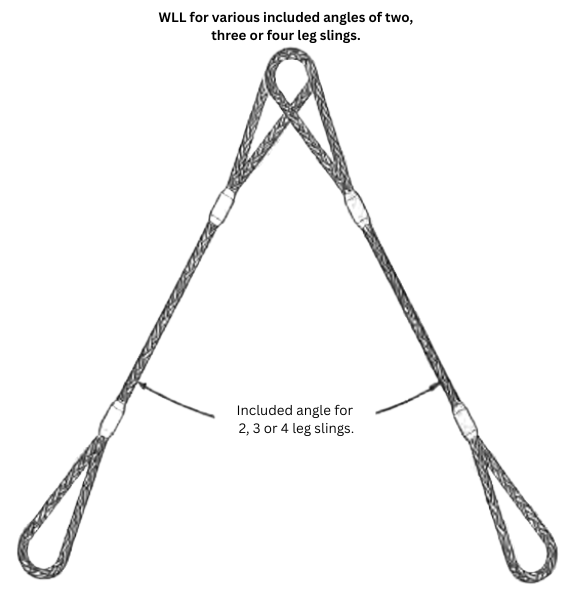

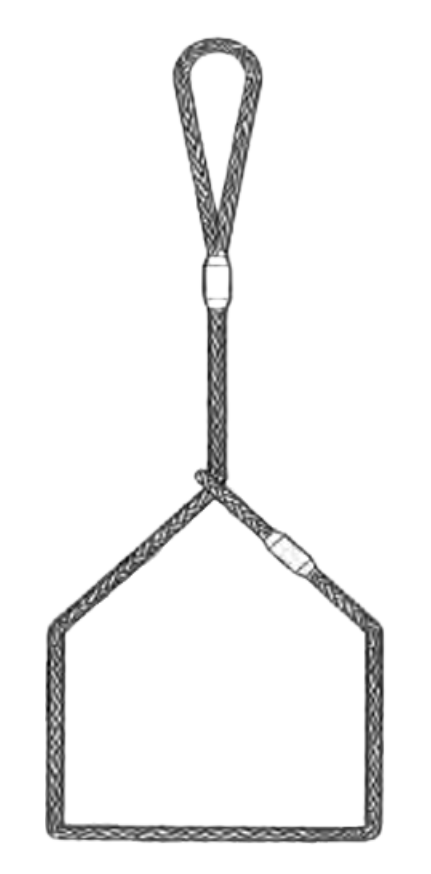

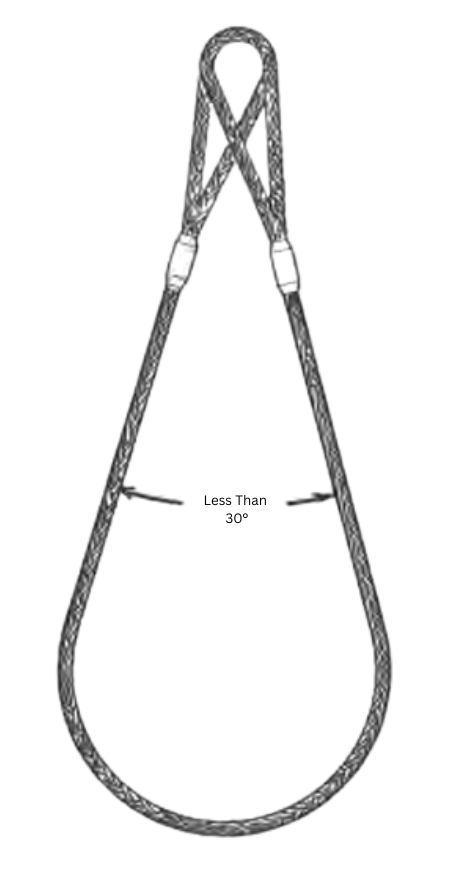

| PRODUCT CODE | SIZE | MBF | NOMINAL Ø | WLL SINGLE FALL | WLL CRADLE LIFT ANGLE <30° | WLL CHOKED ON ROUND LOAD | WLL CHOKED ON RECTANGULAR LOAD | WLL MULTI LEG CHAIN SLINGS | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| <30° | 60° | 90° | 120° | ||||||||
| ANDSSS-52 | Two-5 | 52kN | 10mm | 1.0t | 2.0t | 0.7t | 0.5t | 2.0t | 1.7t | 1.4t | 1.0t |
| ANDSSS-75 | Three-0 | 75kN | 12mm | 1.5t | 2.9t | 1.1t | 0.8t | 2.9t | 2.6t | 2.1t | 1.5t |
| ANDSSS-95 | Three-5 | 95kN | 14mm | 1.8t | 3.5t | 1.4t | 0.9t | 3.5t | 3.1t | 2.5t | 1.8t |
| ANDSSS-125 | Four-0 | 125kN | 16mm | 2.4t | 4.7t | 1.8t | 1.2t | 4.7t | 4.2t | 3.4t | 2.4t |
| ANDSSS-157 | Four-5 | 157kN | 18mm | 3.0t | 5.9t | 2.3t | 1.5t | 5.9t | 5.2t | 4.2t | 3.0t |
| ANDSSS-210 | Five-0 | 210kN | 20mm | 4.1t | 8.0t | 3.1t | 2.1t | 8.0t | 7.1t | 5.8t | 4.1t |
| ANDSSS-270 | Five-5 | 270kN | 22mm | 5.2t | 10.2t | 3.9t | 2.6t | 10.2t | 9.0t | 7.3t | 5.2t |
| ANDSSS-345 | Six-5 | 345kN | 26mm | 6.7t | 13.1t | 5.0t | 3.4t | 13.1t | 11.6t | 9.4t | 6.7t |
| ANDSSS-530 | Eight-0 | 530kN | 32mm | 10.3t | 20.2t | 7.7t | 5.2t | 20.2t | 17.8t | 14.5t | 10.3t |
| ANDSSS-790 | Ten-0 | 790kN | 40mm | 15.3t | 30.0t | 11.5t | 7.7t | 30.0t | 26.5t | 21.6t | 15.3t |
| ANDSSS-1110 | Twelve-0 | 1110kN | 48mm | 21.6t | 42.1t | 16.1t | 10.8t | 42.1t | 37.2t | 30.3t | 21.5t |
| ANDSSS-1460 | Fourteen | 1460kN | 56mm | 28.3t | 55.5t | 21.2t | 14.2t | 55.5t | 49.0t | 39.9t | 28.3t |
| ANDSSS-2168 | Seventeen | 2168kN | 68mm | 42.1t | 82.5t | 31.6t | 21.1t | 82.5t | 72.8t | 59.4t | 42.1t |
| ANDSSS-3015 | Twenty-0 | 3015kN | 80mm | 58.5t | 114.7t | 43.9t | 29.3t | 114.7t | 101.2t | 82.5t | 58.5t |
| ANDSSS-4340 | TwentyFour-0 | 4340kN | 96mm | 84.3t | 165.2t | 63.2t | 42.1t | 165.2t | 145.8t | 118.9t | 84.3t |
