Superflex Strops
Superflex Strops
- Brand: Andromeda Industries
- Capacity: 50kN to 4340kN

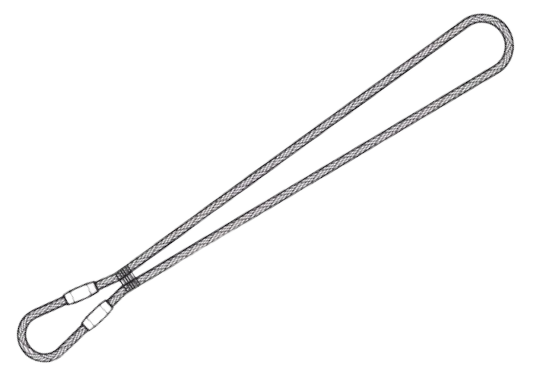

Designed specifically as chokers, Superflex Strops are extremely versatile with excellent gripping power and are ideal for lifting elongated loads such as poles, piles, steel bars, drill rods and tube bundles. Superflex Strops are available in a variety of configurations to suit specific application requirements and are fitted with aluminium alloy ferrules unless otherwise specified. Upon request, steel ferrules can be supplied up to 32mm.
Features
Industries
Documents
Features
- Standard factor of safety is 5
- Plaited design with high wire count
- Fitted with aluminium alloy ferrules as standard
- Steel ferrules supplied on request, up to 32mm
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications

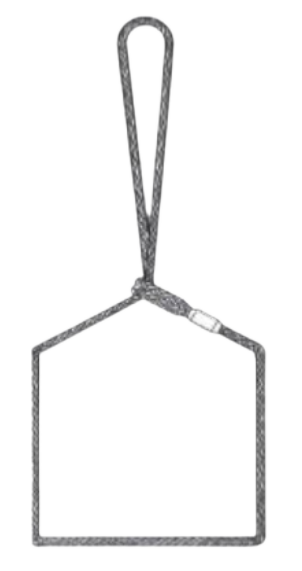

| PRODUCT CODE | SIZE | MBF | NOMINAL Ø | WLL SINGLE FALL | WLL ROUND LOAD | WLL SQUARE LOAD | WLL CRADLE LIFT | |||
|---|---|---|---|---|---|---|---|---|---|---|
| <30° | 60° | 90° | 120° | |||||||
| ANDSS-50 | Two-5 | 50kN | 10mm | 1.5t | 1.1t | 0.8t | 2.9t | 2.6t | 2.1t | 1.5t |
| ANDSS-75 | Three-0 | 75kN | 12mm | 2.3t | 1.7t | 1.1t | 4.5t | 4.0t | 3.2t | 2.3t |
| ANDSS-95 | Three-5 | 95kN | 14mm | 2.7t | 2.0t | 1.4t | 5.3t | 4.7t | 3.8t | 2.7t |
| ANDSS-125 | Four-0 | 125kN | 16mm | 3.6t | 2.7t | 1.8t | 7.1t | 6.2t | 5.1t | 3.6t |
| ANDSS-157 | Four-5 | 157kN | 18mm | 4.5t | 3.4t | 2.3t | 8.8t | 7.8t | 6.3t | 4.5t |
| ANDSS-210 | Five-0 | 210kN | 20mm | 6.1t | 4.6t | 3.0t | 11.9t | 10.5t | 8.6t | 6.1t |
| ANDSS-270 | Five-5 | 270kN | 22mm | 7.8t | 5.9t | 3.9t | 15.3t | 13.5t | 11.0t | 7.8t |
| ANDSS-345 | Six-5 | 345kN | 26mm | 10.0t | 7.5t | 5.0t | 19.6t | 17.3t | 14.1t | 10.0t |
| ANDSS-530 | Eight-0 | 530kN | 32mm | 15.4t | 11.6t | 7.7t | 30.2t | 26.6t | 21.7t | 15.4t |
| ANDSS-790 | Ten-0 | 790kN | 40mm | 23.0t | 17.3t | 11.5t | 45.0t | 39.8t | 32.4t | 23.0t |
| ANDSS-1110 | Twelve-0 | 1110kN | 48mm | 32.4t | 24.3t | 16.2t | 63.5t | 56.0t | 45.7t | 32.4t |
| ANDSS-1460 | Fourteen-0 | 1460kN | 56mm | 42.5t | 31.9t | 21.3t | 83.3t | 73.5t | 59.9t | 42.5t |
| ANDSS-2168 | Seventeen-0 | 2168kN | 68mm | 63.1t | 47.3t | 31.6t | 123.7t | 109.2t | 89.0t | 63.1t |
| ANDSS-3015 | Twenty-0 | 3015kN | 80mm | 87.8t | 65.8t | 43.9t | 172.1t | 151.9t | 123.8t | 87.8t |
| ANDSS-4340 | TwentyFour-0 | 4340kN | 96mm | 126.5t | 94.9t | 63.3t | 247.9t | 218.8t | 178.4t | 126.5 |
