Superflex Recovery Strops
Superflex Recovery Strops
- Brand: Andromeda Industries

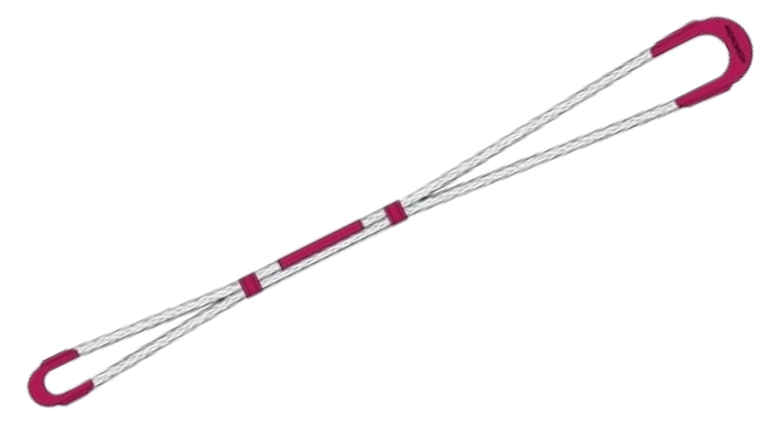

Superflex Recovery Strops strops are constructed from low stretch steel slings, providing strength and flexibility when recovering heavy vehicles. The basic recovery strop is made in a range of sizes with “A” & “B” strop thimbles. The “A” thimble fits into the towing clevis of dump trucks, whilst the “B” thimble is designed for engagement onto the ripper of a bulldozer, with both being suitable for connecting to alternative devices via a bow shackle.
Features
Industries
Documents
Features
- Available in various lengths
- Plaited design with high wire count
- Breaking strength identifiable on each thimble
- Hardened Nickel Chrome Moly Steel ‘B’ thimble
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Mining
- Ports
- Transport
Specifications
Dimensions
Specifications
| PHYSICAL SPECIFICATIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT CODE | STROP SIZE | CABLE SIZE | CABLE PLIES | OTHER LENGTHS | PINØ/MASS OF ALLOY BOW SHACKLE | MASS OF STROP ASSEMBLY | |||
| 6m | 10m | 15m | 20m | ||||||
| ANDSRS-68 | 68 | Six-5 | 2 | 4kg/m | 38mm/6kg | 38kg | 58kg | 75kg | 96kg |
| ANDSRS-100 | 100 | Eight-0 | 2 | 6kg/m | 51mm/14kg | 56kg | 80kg | 111kg | 141kg |
| ANDSRS-150 | 150 | Ten-0 | 2 | 10kg/m | 57mm/19kg | 108kg | 146kg | 195kg | 243kg |
| ANDSRS-200 | 200 | Eight-0 | 4 | 12kg/m | 63mm/26kg | 100kg | 140kg | 210kg | 271kg |
| ANDSRS-300 | 300 | Ten-0 | 4 | 20kg/m | 70mm/38kg | 205kg | 282kg | 378kg | 474kg |
| Please refer to product data sheet available in the Document Folder on this page for further information. | |||||||||
| BOGGED VEHICLE RECOVERY | ||||
|---|---|---|---|---|
| PRODUCT CODE | BREAKING STRENGTH | LEVEL 1 – INCAPACITY SLIPPERY SURFACE | LEVEL 2 – INCAPACITY MEDIUM BOGGED | LEVEL 3 – INCAPACITY SEVERELY BOGGED |
| ANDSRS-68 | 68t | 140 | 70 | 45 |
| ANDSRS-100 | 100t | 200 | 100 | 70 |
| ANDSRS-150 | 150t | 300 | 150 | 100 |
| ANDSRS-200 | 200t | 400 | 200 | 140 |
| ANDSRS-300 | 300t | 600 | 300 | 200 |
| Please refer to product data sheet available in the Document Folder on this page for further information. | ||||
| TOWING UP INCLINED ROADWAYS OR RAMPS | |||||
|---|---|---|---|---|---|
| PRODUCT CODE | GRADIENT 1 IN 10 INCLINE 6° | GRADIENT 1 IN 10 INCLINE 9.5° | GRADIENT 1 IN 10 INCLINE 11° | GRADIENT 1 IN 10 INCLINE 14° | GRADIENT 1 IN 10 INCLINE 18° |
| ANDSRS-68 | 273 | 173 | 144 | 118 | 92 |
| ANDSRS-100 | 407 | 258 | 215 | 178 | 138 |
| ANDSRS-150 | 610 | 386 | 322 | 264 | 206 |
| ANDSRS-200 | 813 | 515 | 429 | 351 | 275 |
| ANDSRS-300 | 1220 | 772 | 644 | 527 | 412 |
| Please refer to product data sheet available in the Document Folder on this page for further information. | |||||
Dimensions
| STANDARD STROP THIMBLE | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT CODE | STROP SIZE | P | W | J | S | T | NET WEIGHT |
| ANDSRS-68 | 68 | 75mm | 145mm | 200mm | 50mm | 40mm | 3kg |
| ANDSRS-100 | 100 | 115mm | 200mm | 270mm | 70mm | 60mm | 6kg |
| ANDSRS-150 | 150 | 125mm | 260mm | 305mm | 90mm | 70mm | 8kg |
| ANDSRS-200 | 200 | 115mm | 200mm | 270mm | 70mm | 95mm | 9kg |
| ANDSRS-300 | 300 | 125mm | 270mm | 305mm | 90mm | 115mm | 13kg |
| Please refer to product data sheet available in the Document Folder on this page for further information. | |||||||
| WIDE STROP THIMBLE | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT CODE | STROP SIZE | P | W | J | S | T | NET WEIGHT |
| ANDSRS-68 | 68 | 140mm | 200mm | 320mm | 65mm | 40mm | 7kg |
| ANDSRS-100 | 100 | 195mm | 300mm | 400mm | 100mm | 60mm | 13kg |
| ANDSRS-150 | 150 | 210mm | 350mm | 500mm | 105mm | 70mm | 18kg |
| ANDSRS-200 | 200 | 195mm | 300mm | 400mm | 100mm | 95mm | 26kg |
| ANDSRS-300 | 300 | 230mm | 360mm | 530mm | 135mm | 115mm | 39kg |
| Please refer to product data sheet available in the Document Folder on this page for further information. | |||||||
| PRODUCT CODE | SIZE – UTS | INTERNAL LENGTH | EXTERNAL LENGTH | THICKNESS | ESTIMATED UTS | NET WEIGHT | SMALL END INSIDE Ø | LARGE END INSIDE Ø | SMALL END OUTSIDE Ø | LARGE END OUTSIDE Ø |
|---|---|---|---|---|---|---|---|---|---|---|
| ANDSRS-68 | 68t | 220mm | 287mm | 23mm | 140t | 7kg | 56mm | 92mm | 118mm | 154mm |
| ANDSRS-100 | 100t | 250mm | 328mm | 30mm | 200t | 10kg | 65mm | 110mm | 134mm | 180mm |
| ANDSRS-150 | 150t | 300mm | 392mm | 38mm | 300t | 12kg | 80mm | 130mm | 162mm | 212mm |
| ANDSRS-200 | 200t | 300mm | 392mm | 50mm | 400t | 14kg | 80mm | 130mm | 162mm | 212mm |
| ANDSRS-300 | 300t | 350mm | 455mm | 60mm | 600t | 22kg | 100mm | 130mm | 200mm | 230mm |
| Please refer to product data sheet available in the Document Folder on this page for further information. | ||||||||||
