Telescopic Spreader Bar 15.0t x 3.6m
- Brand: Maxirig
- Capacity: 15.0t

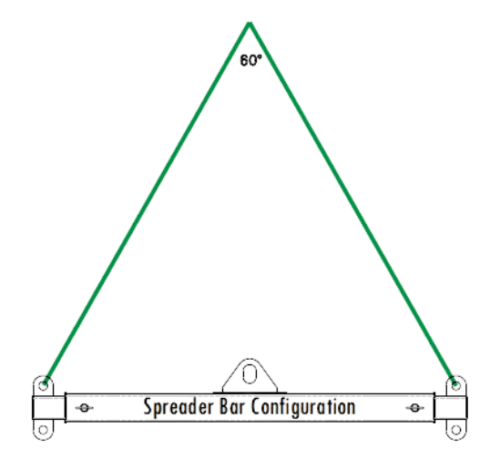

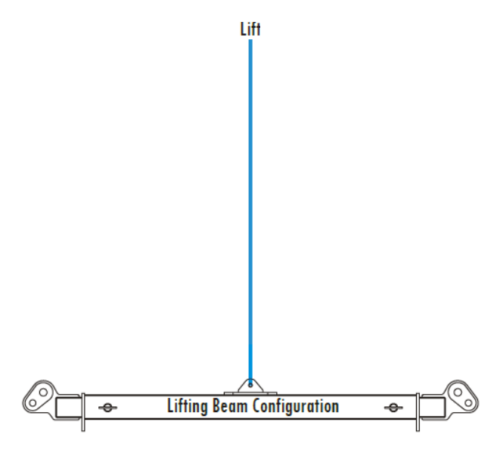

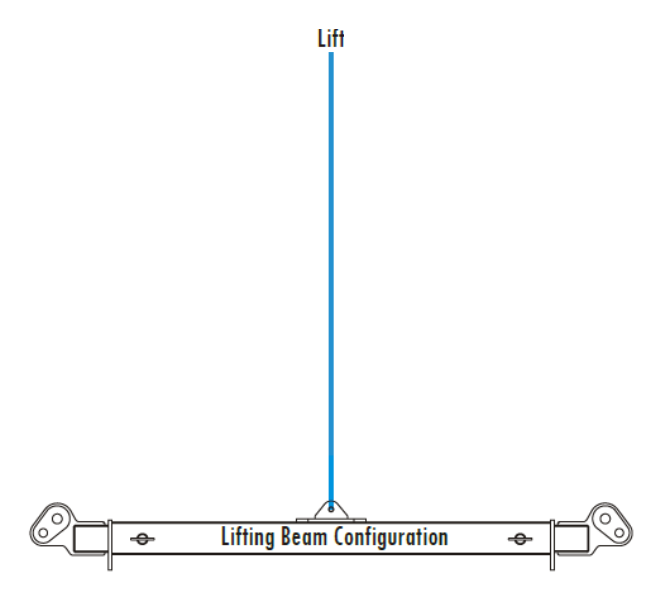

Durable and long-lasting, this versatile and reliable 15t combination beam is designed for a variety of general purpose applications and is sized to suit the stowage points on Franna type cranes. Designed to function as a spreader bar in the 60° position, it can also be used as a lifting beam with top and lower lifting lugs to suit 9.5t Grade 'S' safety bow shackles, and from the centre lift position with a crane hook or shackle. Supplied with proof load test certificate and MPI weld inspection report.
- Australian Standard: AS 4991
Features
Industries
Documents
Features
- Yellow powder coated finish
- Centre lifting lug to suit crane hook or various shackles
- Top lifting lugs to suit 9.5t Grade ‘S’ safety bow shackle
- Lower load lugs to suit 9.5t Grade ‘S’ safety bow shackle
Industries
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
PRODUCT CODE | SPAN | W.L.L. 60° | CENTRE LIFT | SLING LENGTH 60° | APPROX HEADROOM 60° | TARE WEIGHT |
---|---|---|---|---|---|---|
MRTSB2154235 | 2.35m | 15.0t | 2.6m | 2.3m | 2.2m | 95kg |
MRTSB2154251 | 2.51m | 15.0t | 2.3m | 2.5m | 2.5m | 95kg |
MRTSB2154291 | 2.91m | 15.0t | 2.0m | 2.9m | 2.8m | 95kg |
MRTSB2154331 | 3.31m | 15.0t | 1.7m | 3.3m | 3.1m | 95kg |
MRTSB2154369 | 3.69m | 15.0t | 1.6m | 3.7m | 3.4m | 95kg |
