Telescopic Spreader Bar 20.0t x 4.0m
Telescopic Spreader Bar 20.0t x 4.0m
- Brand: Maxirig
- Capacity: 20.0t

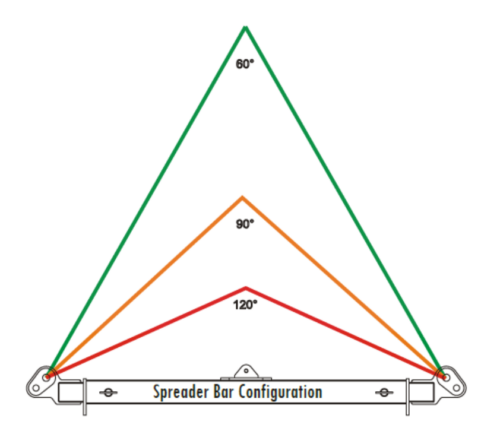

Durable and long-lasting, this versatile and reliable 20t telescopic spreader bar is ideal for a range of heavy lifting applications. With a maximum span of 4 metres, this spreader bar is designed to function in the 60°, 90° and 120° positions. It can also be used as a lifting beam, with top lifting lugs to suit 17t Grade 'S' safety bow shackle, lower load lugs to suit 12t Grade 'S' safety bow shackle and a centre lug to suit a 4.7t Grade 'S' safety bow shackle. Ideal for mobile crane operators, the beam is easy to use and can be adjusted to fit the specific needs of the lift. Supplied with proof load test certificate and MPI weld inspection report.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Yellow powder coated finish
- Complete with MPI welding report
- Constructed from heavy duty steel
- Complete with proof load test certificate
Industries
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
