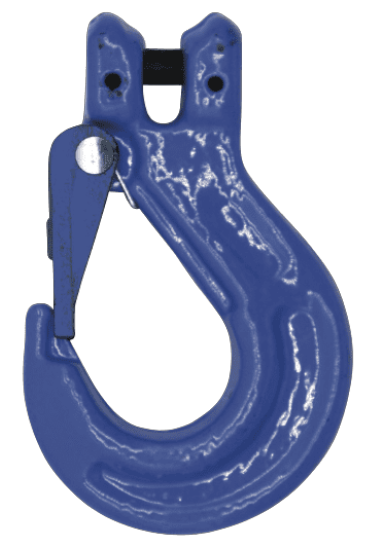

G100 Clevis Sling Hook with Cast Latch
G100 Clevis Sling Hook with Cast Latch
- Brand: Titan Lifting
- Capacity: 1.4t to 19.0t
Safe and versatile, the G100 clevis sling hook with cast latch is ideal for lifting, rigging and securing loads. Providing a secure, direct connection to the load, the cast latch automatically closes when the hook is loaded, ensuring safety during use.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
- Fatigued tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lift/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1004CSH-06 | 1.4t | 6mm | 0.33kg |
| TLT1004CSH-08 | 2.5t | 8mm | 0.70kg |
| TLT1004CSH-10 | 4.0t | 10mm | 1.30kg |
| TLT1004CSH-13 | 6.7t | 13mm | 2.30kg |
| TLT1004CSH-16 | 10.0t | 16mm | 3.60kg |
| TLT1004CSH-20 | 16.0t | 20mm | 7.30kg |
| TLT1004CSH-22 | 19.0t | 22mm | 12.10kg |
Dimensions
| PRODUCT CODE | A±0.5 | B±1 | E±1.5 | H±1 | M±2 | L±2.s |
|---|---|---|---|---|---|---|
| TLT1004CSH-06 | 7.5mm | 32.0mm | 18.5mm | 21.0mm | 68.5mm | 109.0mm |
| TLT1004CSH-08 | 9.5mm | 37.0mm | 25.0mm | 27.5mm | 88.0mm | 134.0mm |
| TLT1004CSH-10 | 12.0mm | 48.0mm | 28.0mm | 33.5mm | 105.5mm | 161.5mm |
| TLT1004CSH-13 | 15.0mm | 59.0mm | 38.0mm | 42.0mm | 134.0mm | 203.0mm |
| TLT1004CSH-16 | 17.5mm | 70.0mm | 44.0mm | 50.0mm | 160.5mm | 248.0mm |
| TLT1004CSH-20 | 25.0mm | 85.0mm | 52.0mm | 56.0mm | 190.5mm | 297.0mm |
| TLT1004CSH-22 | 27.0mm | 100.0mm | 66.0mm | 62.0mm | 214.5mm | 326.0mm |
