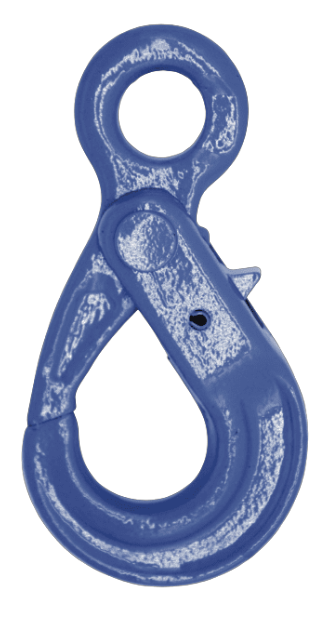

G100 Eye Self Locking Hook
G100 Eye Self Locking Hook
- Brand: Titan Lifting
- Capacity: 1.4t to 19.0t
Designed for optimal safety and versatility, our G100 eye self-locking hook features a self-locking mechanism for secure load connection, preventing the load from accidentally disengaging. The large hook eye is designed for assembling to wire rope, whilst the flat section allows for assembly to omega links and connectors. Once opened, the hook will remain that way until the load is engaged.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Self locking mechanism
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1005ESLH-06 | 1.4t | 6mm | 0.5kg |
| TLT1005ESLH-08 | 2.5t | 8mm | 0.9kg |
| TLT1005ESLH-10 | 4.0t | 10mm | 1.5kg |
| TLT1005ESLH-13 | 6.7t | 13mm | 2.7kg |
| TLT1005ESLH-16 | 10.0t | 16mm | 5.7kg |
| TLT1005ESLH-20 | 16.0t | 20mm | 7.9kg |
| TLT1005ESLH-22 | 19.0t | 22mm | 11.2kg |

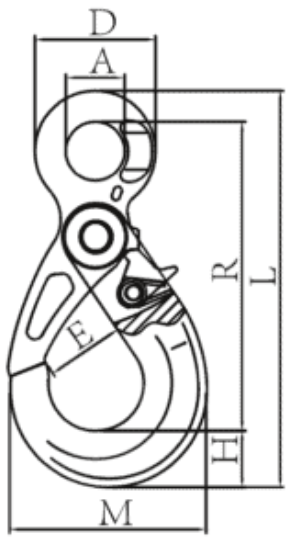

Dimensions
| PRODUCT CODE | A±1 | D±1 | E±0.5 | R±1 | M±2 | L±3 | H±1 |
|---|---|---|---|---|---|---|---|
| TLT1005ESLH-06 | 21.0mm | 43.0mm | 28.0mm | 110.0mm | 70.0mm | 141.0mm | 15.0mm |
| TLT1005ESLH-08 | 27.0mm | 51.0mm | 35.5mm | 137.0mm | 90.0mm | 175.0mm | 20.0mm |
| TLT1005ESLH-10 | 34.5mm | 64.5mm | 45.0mm | 169.0mm | 108.0mm | 212.5mm | 26.0mm |
| TLT1005ESLH-13 | 40.0mm | 80.0mm | 53.5mm | 209.0mm | 138.5mm | 270.0mm | 32.5mm |
| TLT1005ESLH-16 | 50.0mm | 104.0mm | 62.0mm | 254.0mm | 170.5mm | 331.0mm | 38.0mm |
| TLT1005ESLH-20 | 60.0mm | 120.0mm | 76.5mm | 277.0mm | 192.5mm | 369.0mm | 50.0mm |
| TLT1005ESLH-22 | 70.0mm | 134.0mm | 80.0mm | 319.5mm | 205.0mm | 417.0mm | 52.0mm |
