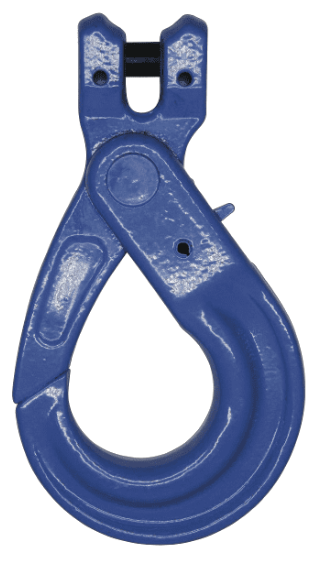

G100 Clevis Self Locking Hook
- Brand: Titan Lifting
- Capacity: 1.4t to 19.0t
Safe and versatile, the G100 clevis self-locking hook is ideal for lifting, rigging and securing loads. Providing a secure connection to the load, the self-locking mechanism automatically closes once the hook is loaded, whilst the safety catch prevents the hook from opening accidentally, ensuring optimal safety during use.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Self locking mechanism
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
---|---|---|---|
TLT1006CSLH-06 | 1.4t | 6mm | 0.5kg |
TLT1006CSLH-08 | 2.5t | 8mm | 0.9kg |
TLT1006CSLH-10 | 4.0t | 10mm | 1.6kg |
TLT1006CSLH-13 | 6.7t | 13mm | 2.9kg |
TLT1006CSLH-16 | 10.0t | 16mm | 5.8kg |
TLT1006CSLH-20 | 16.0t | 20mm | 8.6kg |
TLT1006CSLH-22 | 19.0t | 22mm | 12.1kg |
Dimensions
PRODUCT CODE | A±0.5 | B±1 | E±1 | H±1 | R±2 | M±2 | L±3 |
---|---|---|---|---|---|---|---|
TLT1006CSLH-06 | 7.5mm | 32mm | 28.0mm | 20.0mm | 96.0mm | 70.0mm | 131.0mm |
TLT1006CSLH-08 | 9.5mm | 36mm | 35.5mm | 26.0mm | 123.0mm | 90.0mm | 166.0mm |
TLT1006CSLH-10 | 12.0mm | 46mm | 45.0mm | 30.0mm | 144.0mm | 109.0mm | 196.5mm |
TLT1006CSLH-13 | 15.0mm | 59mm | 53.5mm | 40.5mm | 182.0mm | 138.5mm | 251.0mm |
TLT1006CSLH-16 | 17.5mm | 70mm | 62.0mm | 50.5mm | 217.0mm | 170.5mm | 303.0mm |
TLT1006CSLH-20 | 25.0mm | 85mm | 76.5mm | 62.0mm | 235.0mm | 192.5mm | 337.5mm |
TLT1006CSLH-22 | 25.5mm | 98mm | 80.0mm | 66.0mm | 276.5mm | 205.0mm | 391.0mm |
