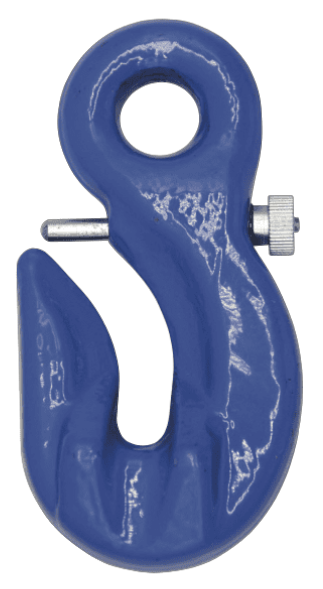

G100 Eye Shortening Grab Hook With Safety Pin
G100 Eye Shortening Grab Hook With Safety Pin
- Brand: Titan Lifting
- Capacity: 2.5t to 6.7t
Durable and versatile, the G100 eye shortening grab hook is ideal for lifting, rigging and securing loads. The hook enables direct connection to G100 chain and rope, whilst also acting as a shortener to adjust the length of chain. Constructed from high quality steel and designed to withstand heavy loads, the hook also features a safety pin which prevents it opening accidentally, ensuring safe usage.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
- Fatigue tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1023ESHSP-8 | 2.5t | 8mm | 0.5kg |
| TLT1023ESHSP-10 | 4.0t | 10mm | 1.0kg |
| TLT1023ESHSP-13 | 6.7t | 13mm | 2.2kg |

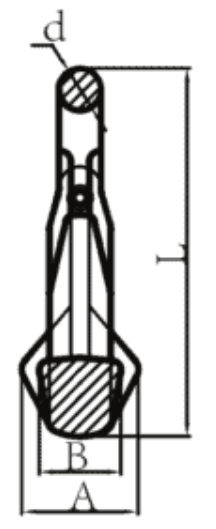

Dimensions
| PRODUCT CODE | A±1 | B±0.8 | d±0.5 | D±0.5 | E±0.5 | L±2 | M |
|---|---|---|---|---|---|---|---|
| TLT1023ESHSP-8 | 35mm | 25mm | 12.0mm | 16.5mm | 10.5mm | 110.0mm | 58.0mm+/-2 |
| TLT1023ESHSP-10 | 64mm | 32mm | 15.0mm | 21.0mm | 14.0mm | 136.5mm | 71.6mm+/-3 |
| TLT1023ESHSP-13 | 57mm | 40mm | 20.5mm | 27.5mm | 15.5mm | 180.0mm | 96.0mm+/-4 |
