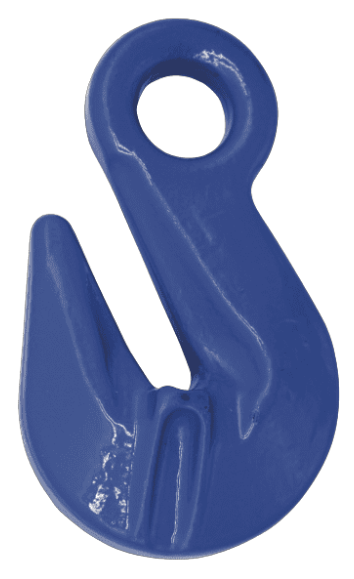

G100 Eye Shortening Grab Hook
G100 Eye Shortening Grab Hook
- Brand: Titan Lifting
- Capacity: 1.4t to 19.0t
Versatile and durable, this G100 eye shortening grab hook is designed to withstand heavy loads and can be used for a variety of applications including lifting, rigging and securing loads. Constructed from high quality steel, this grab hook enables direct connection to a connecting link, whilst also acting as a shortener to adjust the length of chain.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
- Fatigued tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1008ESH-06 | 1.4t | 6mm | 0.20kg |
| TLT1008ESH-08 | 2.5t | 8mm | 0.28kg |
| TLT1008ESH-10 | 4.0t | 10mm | 0.72kg |
| TLT1008ESH-13 | 6.7t | 13mm | 1.60kg |
| TLT1008ESH-16 | 10.0t | 16mm | 2.45kg |
| TLT1008ESH-20 | 16.0t | 20mm | 4.72kg |
| TLT1008ESH-22 | 19.0t | 22mm | 8.20kg |

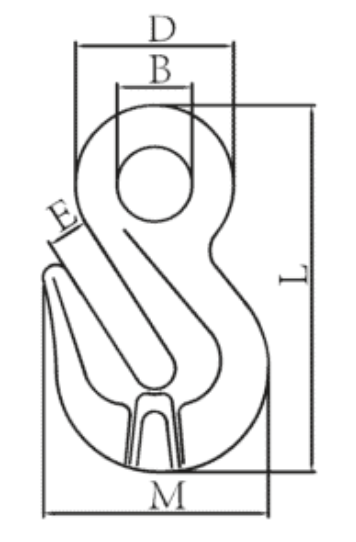

Dimensions
| PRODUCT CODE | E±1 | B±1 | D±:1.5 | Mt2 | L±3 |
|---|---|---|---|---|---|
| TLT1008ESH-06 | 8.0mm | 14.5mm | 30.5mm | 43.5mm | 71.0mm |
| TLT1008ESH-08 | 10.8mm | 18.0mm | 37.0mm | 53.0mm | 91.5mm |
| TLT1008ESH-10 | 13.5mm | 22.5mm | 48.5mm | 72.0mm | 127.5mm |
| TLT1008ESH-13 | 16.5mm | 28.0mm | 59.0mm | 96.0mm | 163.0mm |
| TLT1008ESH-16 | 19.2mm | 36.0mm | 74.0mm | 112.5mm | 183.0mm |
| TLT1008ESH-20 | 24.0mm | 43.5mm | 89.5mm | 143.0mm | 227.0mm |
| TLT1008ESH-22 | 27.0mm | 48.5mm | 100.5mm | 160.5mm | 260.5mm |
