G100 Clevis Shortening Grab Hook
G100 Clevis Shortening Grab Hook
- Brand: Titan Lifting
- Capacity: 1.4t to 19.0t

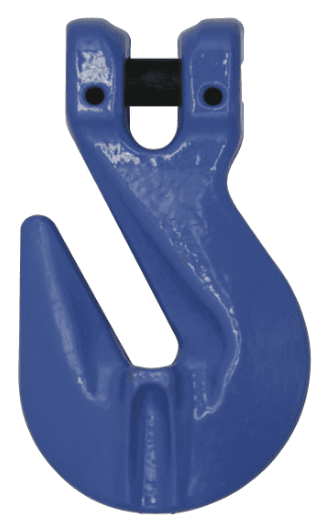

Durable and versatile, the G100 clevis shortening grab hook is ideal for lifting, rigging and securing loads. The clevis hook enables direct connection to G100 chain and ropes, whilst also acting as a shortener to adjust the length of chain. Designed to withstand heavy loads, this clevis hook is constructed from high quality steel with a blue powder coated finish and black oxide load pin.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Proof tested at 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
- Fatigued tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1009CSH-06 | 1.4t | 6mm | 0.22kg |
| TLT1009CSH-08 | 2.5t | 8mm | 0.34kg |
| TLT1009CSH-10 | 4.0t | 10mm | 0.82kg |
| TLT1009CSH-13 | 6.7t | 13mm | 1.75kg |
| TLT1009CSH-16 | 10.0t | 16mm | 2.88kg |
| TLT1009CSH-20 | 16.0t | 20mm | 4.84kg |
| TLT1009CSH-22 | 19.0t | 22mm | 8.30kg |
Dimensions
| PRODUCT CODE | A±0.5 | B±1.5 | E±1 | M±2 | L±2 |
|---|---|---|---|---|---|
| TLT1009CSH-06 | 7.5mm | 32mm | 8.0mm | 43.5mm | 75.0mm |
| TLT1009CSH-08 | 9.5mm | 36mm | 10.8mm | 53.0mm | 91.5mm |
| TLT1009CSH-10 | 12.0mm | 46mm | 13.5mm | 72.0mm | 126.0mm |
| TLT1009CSH-13 | 15.0mm | 59mm | 16.5mm | 96.0mm | 163.5mm |
| TLT1009CSH-16 | 17.5mm | 70mm | 19.2mm | 112.5mm | 183.5mm |
| TLT1009CSH-20 | 24.0mm | 85mm | 24.0mm | 143.0mm | 224.0mm |
| TLT1009CSH-22 | 27.0mm | 100mm | 27.0mm | 160.5mm | 262.0mm |
