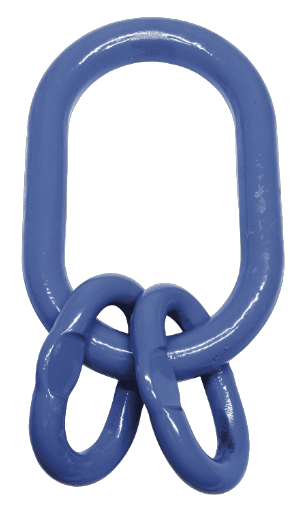

G100 Multi Link Assembly with Short Sub Links
G100 Multi Link Assembly with Short Sub Links
- Brand: Titan Lifting
- Capacity: 2.4t to 32.9t
With a master link and two small size intermediate links for 2, 3 or 4 leg chain slings and wire rope slings, this G100 multi-link assembly. The flattened section on the transition links enables additional, universal connection options providing versatility and adaptability - even when lifting overhead - making it ideal for a wide range of industrial applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Proof tested at 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
- Fatigued tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | 3-4 LEG SLING | NET WEIGHT |
|---|---|---|---|
| TLT1012MR-S-6 | 2.4t | 6mm | 1.30kg |
| TLT1012MR-S-8 | 4.3t | 8mm | 2.33kg |
| TLT1012MR-S-10 | 6.9t | 10mm | 3.70kg |
| TLT1012MR-S-13 | 11.6t | 13mm | 6.50kg |
| TLT1012MR-S-16 | 17.3t | 16mm | 10.10kg |
| TLT1012MR-S-20 | 27.7t | 20mm | 22.80kg |
| TLT1012MR-S-22 | 32.9t | 22mm | 26.00kg |
Dimensions
| PRODUCT CODE | A | B | D | a | b | d |
|---|---|---|---|---|---|---|
| TLT1012MR-S-6 | 135mm | 75mm | 19mm | 54mm | 25mm | 13.5mm |
| TLT1012MR-S-8 | 160mm | 90mm | 23mm | 70mm | 35mm | 16.5mm |
| TLT1012MR-S-10 | 180mm | 100mm | 27mm | 85mm | 40mm | 19.0mm |
| TLT1012MR-S-13 | 200mm | 110mm | 33mm | 115mm | 50mm | 23.0mm |
| TLT1012MR-S-16 | 260mm | 140mm | 36mm | 140mm | 65mm | 27.0mm |
| TLT1012MR-S-20 | 350mm | 190mm | 50mm | 150mm | 70mm | 33.0mm |
| TLT1012MR-S-22 | 350mm | 190mm | 50mm | 180mm | 100mm | 36.0mm |
