G100 Multi Link Assembly with Medium Sub Links
G100 Multi Link Assembly with Medium Sub Links
- Brand: Titan Lifting
- Capacity: 2.4t to 17.3t
Our type G100 multi link assembly with medium sub links rings, feature a large central ring and two intermediate links, each with the same lifting capacity. Providing flexibility for a wide range of lifting configurations the multi link assembly features a flat section, and s designed to accommodate chain sling or wire rope sling applications with two, three, or four legs. Individually proof tested at 2.5 times the W.L.L. and fatigued tested at 1.5 times the W.L.L. for 20,000 cycles, with 100% Magnaflux crack detection and coated in a blue powder plasticised finish. Mill and test certificates are available upon request.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Proof tested at 2.5 x W.L.L.
- Flat section for application flexibility
- Manufactured from forged super alloy steel
- Fatigued tested at 1.5x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1015MR-M-6 | 2.4t | 6mm | 1.8kg |
| TLT1015MR-M-8 | 4.3t | 8mm | 3.0kg |
| TLT1015MR-M-10 | 6.9t | 10mm | 6.5kg |
| TLT1015MR-M-13 | 11.6t | 13mm | 15.0kg |
| TLT1015MR-M-16 | 17.3t | 16mm | 23.0kg |

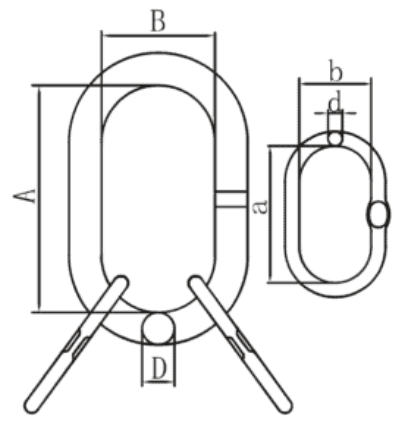

Dimensions
| PRODUCT CODE | A | B | D | a | b | d |
|---|---|---|---|---|---|---|
| TLT1015MR-M-6 | 150mm | 90mm | 19mm | 120mm | 70mm | 14mm |
| TLT1015MR-M-8 | 160mm | 95mm | 22mm | 140mm | 80mm | 17mm |
| TLT1015MR-M-10 | 200mm | 120mm | 30mm | 160mm | 95mm | 22mm |
| TLT1015MR-M-13 | 250mm | 150mm | 40mm | 200mm | 120mm | 30mm |
| TLT1015MR-M-16 | 300mm | 200mm | 50mm | 200mm | 120mm | 32mm |
