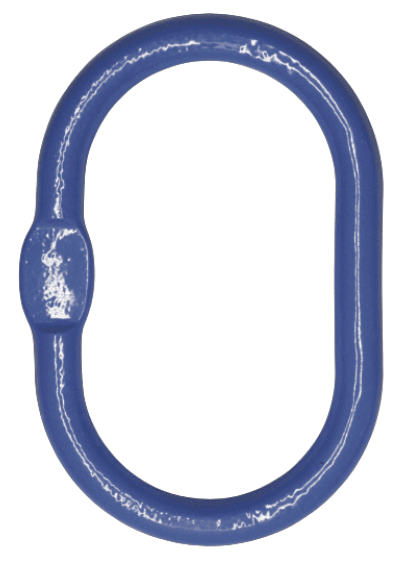

G100 Master Single Head Ring
G100 Master Single Head Ring
- Brand: Titan Lifting
- Capacity: 2.5t to 20.0t
With its flattened section, these G100 master single head ring offer flexible connecting options, and is designed to accommodate both single leg and double leg chain slings, including wire rope sling applications. Each head ring is individually proof tested at 2.5 times the working load limit (WLL) and fatigue tested at 1.5 times the WLL for 20,000 cycles, with 100% Magnaflux crack detection and coated in a blue powder plasticised finish. Mill and test certificates are available upon request.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Proof tested at 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Electro galvanised spring sleeve and pin
- Fatigue tested at 1.5 x W.L.L. for 20,000 cycle
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. 1 LEG | SIZE 1 LEG | W.L.L. 2 LEG | SIZE 2 LEG | NET WEIGHT |
|---|---|---|---|---|---|
| TL1013SR-86 | 2.5t | 8mm | 2.4t | 6mm | 0.4kg |
| TL1013SR-108 | 4.0t | 10mm | 4.3t | 8mm | 0.8kg |
| TL1013SR-1310 | 6.7t | 13mm | 6.9t | 10mm | 1.5kg |
| TL1013SR-1613 | 10.0t | 16mm | 11.6t | 13mm | 2.5kg |
| TL1013SR-2016 | 16.0t | 20mm | 17.3t | 16mm | 5.2kg |
| TL1013SR-2220 | 19.0t | 22mm | 27.7t | 20mm | 7.7kg |
Dimensions
| PRODUCT CODE | A | B | D |
|---|---|---|---|
| TL1013SR-86 | 120mm | 70mm | 14mm |
| TL1013SR-108 | 140mm | 80mm | 17mm |
| TL1013SR-1310 | 160mm | 95mm | 22mm |
| TL1013SR-1613 | 190mm | 110mm | 28mm |
| TL1013SR-2016 | 240mm | 140mm | 34mm |
| TL1013SR-2220 | 250mm | 150mm | 42mm |
