G100 Swivel Self Locking Hook
G100 Swivel Self Locking Hook
- Brand: Titan Lifting
- Capacity: 1.4t to 19.0t

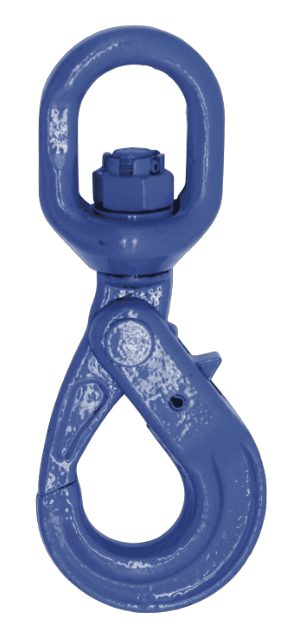

Robust and reliable, our G100 swivel self locking hook, automatically closes when the hook is loaded, preventing accidental disengagement. The large eye enables assembling to wire rope, whilst the flat section on the swivel eye allows for the attachment of omega links and connectors. For additional safety, the trigger mechanism can be disengaged by the user to easily disengage the load when necessary. This hook does not have a bearing.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Large swivel eye
- Self locking hook
- Flat section on swivel eye
- Trigger release mechanism
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1007SSLH-06 | 1.4t | 6mm | 0.6kg |
| TLT1007SSLH-08 | 2.5t | 8mm | 1.1kg |
| TLT1007SSLH-10 | 4.0t | 10mm | 2.0kg |
| TLT1007SSLH-13 | 6.7t | 13mm | 4.0kg |
| TLT1007SSLH-16 | 10.0t | 16mm | 6.8kg |
| TLT1007SSLH-20 | 16.0t | 20mm | 12.5kg |
| TLT1007SSLH-22 | 19.0t | 22mm | 17.1kg |

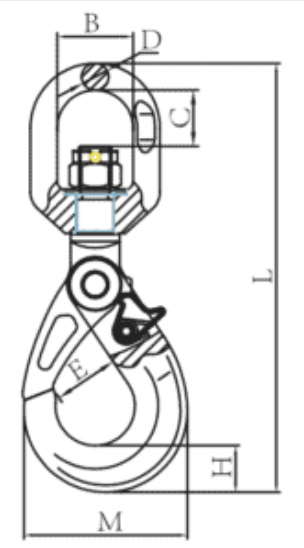

Dimensions
| PRODUCT CODE | B±1 | C±1 | D±0.5 | E±1 | H±1 | M±2 | L±3 |
|---|---|---|---|---|---|---|---|
| TLT1007SSLH-06 | 32.5mm | 23.0mm | 11.5mm | 28.0mm | 20.0mm | 70.0mm | 184mm |
| TLT1007SSLH-08 | 36.0mm | 28.5mm | 13.0mm | 35.5mm | 26.0mm | 90.0mm | 226mm |
| TLT1007SSLH-10 | 42.0mm | 35.0mm | 15.5mm | 45.0mm | 30.0mm | 108.0mm | 269mm |
| TLT1007SSLH-13 | 50.0mm | 41.0mm | 17.0mm | 53.6mm | 43.0mm | 138.5mm | 327mm |
| TLT1007SSLH-16 | 61.0mm | 58.0mm | 21.5mm | 62.0mm | 50.5mm | 170.0mm | 413mm |
| TLT1007SSLH-20 | 72.0mm | 63.0mm | 26.0mm | 76.5mm | 62.0mm | 192.5mm | 460mm |
| TLT1007SSLH-22 | 97.0mm | 98.0mm | 33.0mm | 80.0mm | 65.0mm | 205.0mm | 566mm |
