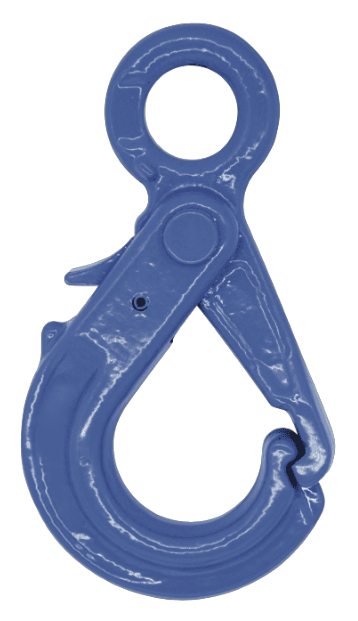

G100 Eye Self Locking Hook with Grip Latch
- Brand: Titan Lifting
- Capacity: 2.5t to 10.0t
Our G100 eye self-locking hook with grip latch is designed for optimal safety and versatility. The self-locking mechanism ensures a secure connection to the load, preventing it from accidentally disengaging, whilst the special grip latch provides additional secure closing. With a large hook eye designed for assembling to wire rope, and a flat section allowing for assembly to omega links and connectors, this hook is ideal for a range of industrial applications.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy
- Fatigued tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
---|---|---|---|
TLT1016ESLHGL-08 | 2.5t | 8mm | 0.81kg |
TLT1016ESLHGL-10 | 4.0t | 10mm | 1.41kg |
TLT1016ESLHGL-13 | 6.7t | 13mm | 2.61kg |
TLT1016ESLHGL-16 | 10.0t | 16mm | 4.45kg |

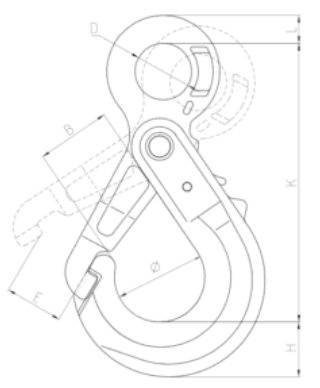

Dimensions
PRODUCT CODE | B±1.5 | D±1.5 | E±2 | K±2 | H±1 | L±1 | ر2 |
---|---|---|---|---|---|---|---|
TLT1016ESLHGL-08 | 37.5mm | 27.0mm | 35mm | 137mm | 21.0mm | 12mm | 45mm |
TLT1016ESLHGL-10 | 48.0mm | 34.5mm | 46mm | 169mm | 30.0mm | 15mm | 56mm |
TLT1016ESLHGL-13 | 52.0mm | 40.0mm | 56mm | 205mm | 39.0mm | 20mm | 64mm |
TLT1016ESLHGL-16 | 70.0mm | 50.0mm | 86mm | 252mm | 46.3mm | 27mm | 80mm |
