G100 Swivel Self Locking Hook with Grip Latch
G100 Swivel Self Locking Hook with Grip Latch
- Brand: Titan Lifting
- Capacity: 2.5t to 10.0t

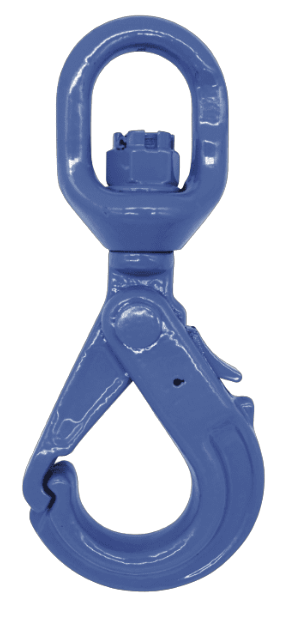

Robust and reliable, our G100 swivel self locking hook with grip latch, automatically closes when the hook is loaded, preventing accidental disengagement, whilst the grip latch provides additional secure closing. The large eye enables assembling to wire rope, whilst the flat section on the swivel eye allows for the attachment of omega links and connectors. For additional safety, the trigger mechanism can be disengaged by the user to easily disengage the load when necessary. This hook does not have a bearing.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy
- Fatigued tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1018SSLHGL-08 | 2.5t | 8mm | 1.03kg |
| TLT1018SSLHGL-10 | 4.0t | 10mm | 1.86kg |
| TLT1018SSLHGL-13 | 6.7t | 13mm | 3.34kg |
| TLT1018SSLHGL-16 | 10.0t | 16mm | 5.90kg |
Dimensions
| PRODUCT CODE | A±2 | B±2 | C±1 | D±0.5 | E±2 | H±1 | K±3 | L±3 | ر2 |
|---|---|---|---|---|---|---|---|---|---|
| TLT1018SSLHGL-08 | 28.5mm | 37.5mm | 36mm | 13.0mm | 32mm | 21.0mm | 185.0mm | 220mm | 45mm |
| TLT1018SSLHGL-10 | 39.0mm | 48.0mm | 42mm | 15.5mm | 46mm | 30.0mm | 219.0mm | 264mm | 56mm |
| TLT1018SSLHGL-13 | 46.0mm | 52.0mm | 49mm | 19.0mm | 56mm | 39.0mm | 275.5mm | 334mm | 64mm |
| TLT1018SSLHGL-16 | 66.0mm | 70.0mm | 62mm | 23.0mm | 91mm | 46.3mm | 329.0mm | 400mm | 80mm |
