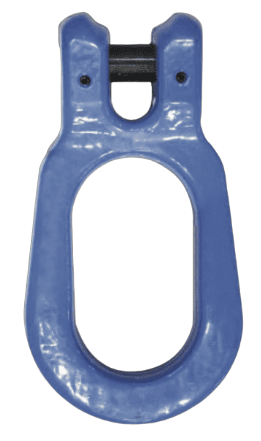

G100 Clevis Pear Link
G100 Clevis Pear Link
- Brand: Titan Lifting
- Capacity: 6.7t
Providing a reliable, safe connection, the G100 clevis pear link is durable and versatile making it suitable for use in reevable slings as a top or terminal end fitting for general lifting, as well as choking in pulling applications. Mill and test certificates are available upon request.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy
- Fatigued tested to 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1033CPL-13 | 6.7t | 13mm | 1.36kg |
Dimensions
| PRODUCT CODE | A±1 | B±0.5 | C±1 | D±1 | M±1.5 | N±2 | H±1 | K±0.5 | L±1.5 | G±0.2 | E±0.2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TLT1033CPL-13 | 59mm | 38mm | 15mm | 50mm | 93mm | 90mm | 21mm | 21.5mm | 174mm | 16mm | 35mm |
