G100 Clevis Omega Link
G100 Clevis Omega Link
- Brand: Titan Lifting
- Capacity: 1.4t to 10.0t
Providing a reliable, safe connection, the G100 clevis omega link is durable and versatile, making it an ideal connection between chain and other components. The clevis design allows for easy attachment to lifting equipment, whilst the omega shape provides a larger contact area for enhanced stability and load distribution. Mill and test certificates are available upon request. Not to be connected to head rings.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy
- Fatigued tested to 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1027COL-06 | 1.4t | 6mm | 0.12kg |
| TLT1027COL-08 | 2.5t | 8mm | 0.27kg |
| TLT1027COL-10 | 4.0t | 10mm | 0.44kg |
| TLT1027COL-13 | 6.7t | 13mm | 0.89kg |
| TLT1027COL-16 | 10.0t | 16mm | 1.69kg |

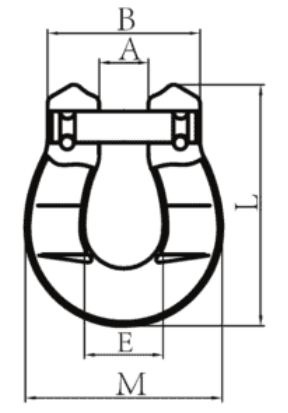

Dimensions
| PRODUCT CODE | A±0.5 | B±2 | E±1.5 | M±2 | L±2 |
|---|---|---|---|---|---|
| TLT1027COL-06 | 8.5mm | 32.5mm | 20.0mm | 44mm | 55.0mm |
| TLT1027COL-08 | 10.5mm | 42.0mm | 24.0mm | 60mm | 73.5mm |
| TLT1027COL-10 | 12.5mm | 48.5mm | 31.0mm | 70mm | 90.0mm |
| TLT1027COL-13 | 16.0mm | 60.0mm | 38.5mm | 90mm | 109.0mm |
| TLT1027COL-16 | 19.0mm | 75.5mm | 51.0mm | 112mm | 141.5mm |
