G100 Clevis Forestry Logging C Hook
G100 Clevis Forestry Logging C Hook
- Brand: Titan Lifting
- Capacity: 2.5t to 6.7t
Robust and reliable, our G100 clevis forestry logging C hook is specifically designed for use in reeving, logging and general forestry applications. The hook features a narrow throat opening to prevent chain accidently dislodging during reeving applications, enhancing user safety. Mill and test certificates available upon request. Not to be used for lifting.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Load pin individually tested
- 100% Magnaflux crack detection
- Constructed from forged super alloy
- Fatigued tested to 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1021CFCH-8 | 2.5t | 8mm | 0.41kg |
| TLT1021CFCH-13 | 6.7t | 13mm | 1.87kg |

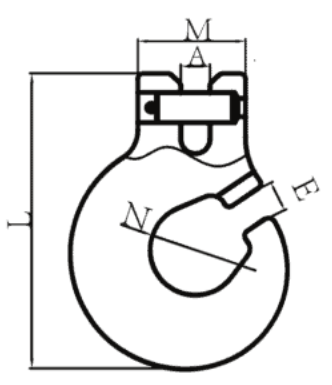

Dimensions
| PRODUCT CODE | A±0.5 | M | N±0.5 | E±0.5 | L±0.5 |
|---|---|---|---|---|---|
| TLT1021CFCH-8 | 9.5mm | 35mm | 31.0mm | 9.8mm | 95.5mm |
| TLT1021CFCH-13 | 16.0mm | 59mm | 49.5mm | 16.0mm | 162.0mm |
