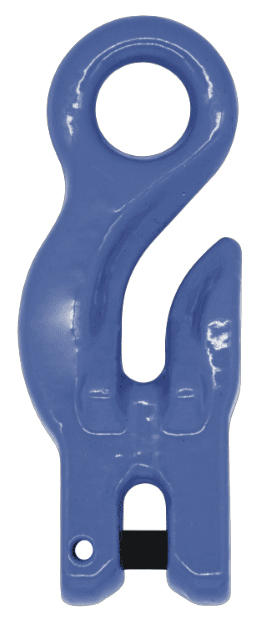

G100 Clevis Eye Shortening Grab Hook
G100 Clevis Eye Shortening Grab Hook
- Brand: Titan Lifting
- Capacity: 1.4t to 16.0t
Robust and reliable, the G100 clevis eye shortening grab hook provides efficient load securement. With its clevis eye and shortening grab hook configuration, this hook provides a reliable connection and allows for quick and easy adjustment of load length. It also streamlines the amount of fittings used, resulting in less clutter and congestion at the top of the head ring.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy
- Fatigued tested to 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1051CESH-6 | 1.4t | 6mm | 0.30kg |
| TLT1051CESH-8 | 2.5t | 8mm | 0.69kg |
| TLT1051CESH-10 | 4.0t | 10mm | 1.33kg |
| TLT1051CESH-13 | 6.7t | 13mm | 2.36kg |
| TLT1051CESH-16 | 10.0t | 16mm | 4.50kg |
| TLT1051CESH-20 | 16.0t | 20mm | 9.00kg |
Dimensions
| PRODUCT CODE | | A±0.5 | B±2 | C±0.5 | L1±2 | L±3 | ر1 | ر1.5 |
|
|---|---|---|---|---|---|---|---|---|
| TLT1051CESH-6 | 18mm | 8.0mm | 32.0mm | 8.0mm | 88mm | 112mm | 9mm | 17.5mm |
| TLT1051CESH-8 | 24mm | 10.0mm | 36.0mm | 10.0mm | 116mm | 145mm | 12mm | 23.0mm |
| TLT1051CESH-10 | 30mm | 12.5mm | 48.0mm | 12.5mm | 145mm | 184mm | 15mm | 28.5mm |
| TLT1051CESH-13 | 37mm | 15.5mm | 59.5mm | 15.5mm | 178mm | 223mm | 18mm | 35.0mm |
| TLT1051CESH-16 | 45mm | 19.0mm | 70.0mm | 19.0mm | 216mm | 273mm | 22mm | 42.0mm |
| TLT1051CESH-20 | 58mm | 24.5mm | 85.0mm | 24.5mm | 278mm | 351mm | 28mm | 52.0mm |
