G100 Clevis Clutch with Safety Pin
G100 Clevis Clutch with Safety Pin
- Brand: Titan Lifting
- Capacity: 1.4t to 10.0t
This robust and reliable G100 clevis clutch with safety pin, is suitable for a range of lifting and rigging applications. Safe and versatile, it is ideal for shortening chains and securing them in place. The clutch features a safety pin that prevents the chain from disengaging, whilst the clevis eye allows for direct connection to chain slings. Not recommended for back hooking, reeving applications or as a bottom fitting.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
- Fatigued tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1057CSCSP-6 | 1.4t | 6mm | 0.25kg |
| TLT1057CSCSP-7/8 | 2.5t | 7/8mm | 0.41kg |
| TLT1057CSCSP-10 | 4.0t | 10mm | 0.75kg |
| TLT1057CSCSP-13 | 6.7t | 13mm | 1.67kg |
| TLT1057CSCSP-16 | 10.0t | 16mm | 4.20kg |

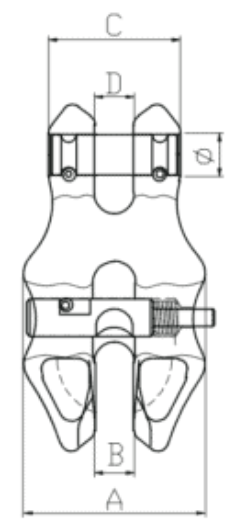

Dimensions
| PRODUCT CODE | A±0.5 | B±0.5 | C±0.5 | D±0.5 | M±0.5 | N±0.5 | ر0.1 | L±3 |
|---|---|---|---|---|---|---|---|---|
| TLT1057CSCSP-6 | 38mm | 7.5mm | 27.0mm | 7.5mm | 29.0mm | 16mm | 7.7mm | 73mm |
| TLT1057CSCSP-7/8 | 50mm | 9.5mm | 33.0mm | 9.5mm | 36.0mm | 23mm | 9.2mm | 92mm |
| TLT1057CSCSP-10 | 60mm | 11.7mm | 43.5mm | 11.7mm | 45.4mm | 36mm | 13.3mm | 115mm |
| TLT1057CSCSP-13 | 79mm | 15.0mm | 55.0mm | 15.0mm | 54.0mm | 34mm | 16.3mm | 149mm |
| TLT1057CSCSP-16 | 98mm | 19.0mm | 70.0mm | 19.0mm | 70.0mm | 40mm | 19.7mm | 184mm |
