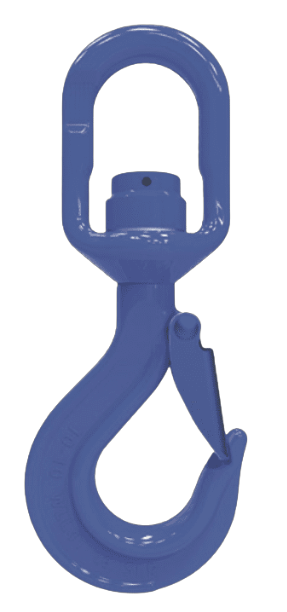

G100 Swivel Sling Safety Hook with Bearing & Latch
G100 Swivel Sling Safety Hook with Bearing & Latch
- Brand: Titan Lifting
- Capacity: 1.4t to 10.0t
Secure and versatile, our G100 swivel sling hook with bearing and latch automatically closes when the hook is loaded, preventing accidental disengagement and enhancing safety. The flat section on the swivel eye allows for the attachment of omega links and connectors, whilst the ball bearing in the swivel enables smooth and easy rotation under load.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Proof tested to 2.5 x W.L.L.
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
- Fatigued tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT1095SSHWB-6 | 1.4t | 6mm | 0.65kg |
| TLT1095SSHWB-8 | 2.5t | 8mm | 0.95kg |
| TLT1095SSHWB-10 | 4.0t | 10mm | 1.71kg |
| TLT1095SSHWB-13 | 6.7t | 13mm | 3.13kg |
| TLT1095SSHWB-16 | 10.0t | 16mm | 5.44kg |

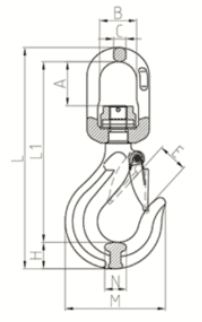

Dimensions
| PRODUCT CODE | A | B | E | M | L1 | N | C | H |
|---|---|---|---|---|---|---|---|---|
| TLT1095SSHWB-6 | 37±1.5 | 32.5±1.5 | 24±1.5 | 77±2 | 141±3 | 16±1 | 11.5±1 | 19±1 |
| TLT1095SSHWB-8 | 41.6±2 | 41±2 | 28.5±1.5 | 88±2 | 213±4 | 20±1 | 13±1 | 26±1 |
| TLT1095SSHWB-10 | 51±2 | 48±2 | 34±2 | 105±3 | 263±4 | 25±1.5 | 15.5±1.5 | 29.5±1.5 |
| TLT1095SSHWB-13 | 59±3 | 55±3 | 40±2 | 135±3 | 310±5 | 32±1.5 | 17±1.5 | 38±1.5 |
| TLT1095SSHWB-16 | 68±3 | 61±3 | 45±3 | 161±4 | 364±5 | 37.5±1.5 | 21.5±2 | 45±2 |
