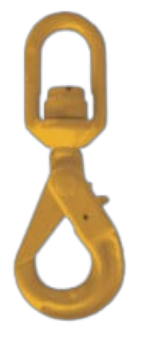

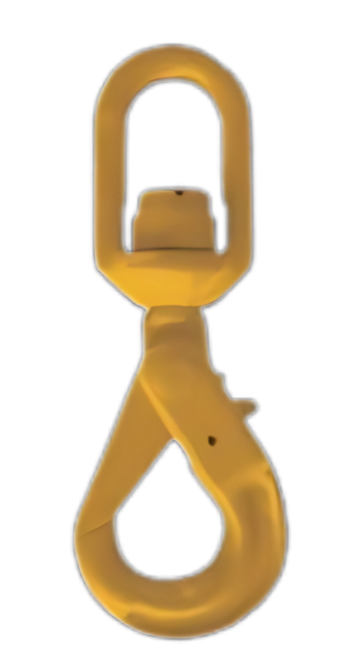

G80 Swivel Self Locking Hook with Bearing
G80 Swivel Self Locking Hook with Bearing
- Brand: Titan Lifting
- Capacity: 1.2t to 8.0t
Strong and versatile, this G80 swivel self locking hook with bearing, automatically closes when the hook is loaded, preventing accidental disengagement. The large eye enables assembling to wire rope, whilst the flat section on the swivel eye allows for the attachment of omega links and connectors. The trigger mechanism permits the user to easily disengage the load when necessary, whilst the ball bearing in the swivel facilitates smooth and easy rotation.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Large eye
- Self locking hook
- Flat section on swivel eye
- Trigger release mechanism
Industries
- Civil
- Constructions
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT042SSLHWB-6 | 1.2t | 6mm | 0.71kg |
| TLT042SSLHWB-7/8 | 2.0t | 7/8mm | 1.10kg |
| TLT042SSLHWB-10 | 3.2t | 10mm | 2.00kg |
| TLT042SSLHWB-13 | 5.3t | 13mm | 4.00kg |
| TLT042SSLHWB-16 | 8.0t | 16mm | 7.30kg |
Dimensions
| PRODUCT CODE | B | C | D | L | T | E |
|---|---|---|---|---|---|---|
| TLT042SSLHWB-6 | 32.5mm | 34.8mm | 11.5mm | 163.3mm | 34mm | 27mm |
| TLT042SSLHWB-7/8 | 36.0mm | 40.0mm | 13.0mm | 195.2mm | 46mm | 35mm |
| TLT042SSLHWB-10 | 42.0mm | 48.0mm | 15.5mm | 237.0mm | 56mm | 44mm |
| TLT042SSLHWB-13 | 50.0mm | 58.0mm | 17.0mm | 282.0mm | 69mm | 53mm |
| TLT042SSLHWB-16 | 61.0mm | 61.0mm | 21.5mm | 341.5mm | 86mm | 60mm |
