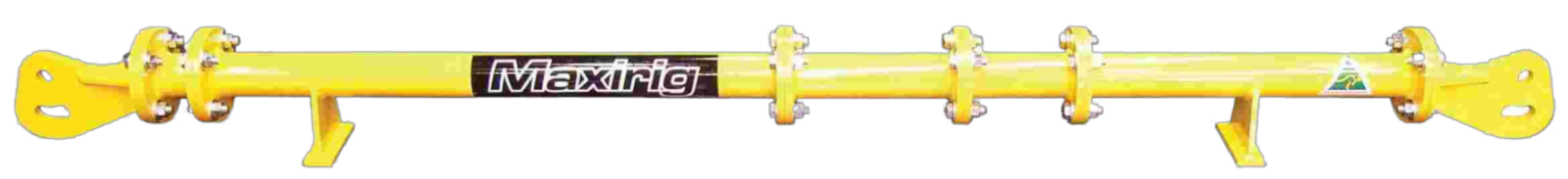

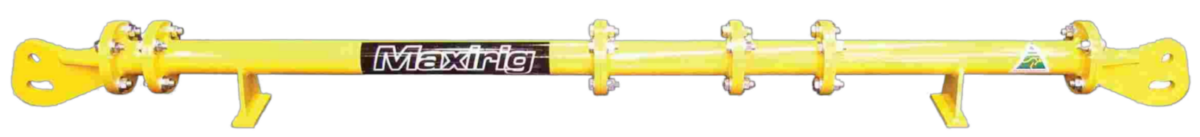

Tubular Spreader Bar
- Brand: Maxirig
- Capacity: 4.0t to 150.0t
These lightweight and adjustable tubular spreader bars are safe and versatile, making them suitable for high working load limits in construction and industrial applications. Each unit is made of heavy-duty steel and is used to distribute the load of a lifted object over a wider area. This helps to prevent the object from tipping or collapsing, whilst also making it easier to lift and manoeuvre the object safely and efficiently.
- Australian Standard: AS 4991
Features
Industries
Documents
Features
- Load bearing eyes
- Lockable mechanism
- Constructed from high strength steel
- Supplied with test certificate and magnetic particle inspection report
Industries
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. at MAX. LENGTH 60° | W.L.L. at MAX. LENGTH 90° | W.L.L. at MAX. LENGTH 120° | LENGTH ADJUSTMENT RANGE – MAX. | LENGTH ADJUSTMENT RANGE – MIN. | ADJUSTMENT INCREMENT | TARE WEIGHT |
---|---|---|---|---|---|---|---|
MRMAXMB4 | 4t | 4t | 3t | 1.5m | 1.5m | 100mm | 50kg |
MRMAXMB8 | 8t | 5t | 3t | 2.5m | 2.5m | 100mm | 85kg |
MRMAXMB16 | 16t | 9t | 5t | 4.0m | 1.0m | 500mm | 140kg |
MRMAXMB26 | 26t | 15t | 8t | 6.0m | 1.5m | 500mm | 300kg |
MRMAXMB35 | 35t | 20t | 11t | 8.0m | 1.5m | 500mm | 470kg |
MRMAXMB37 | 37t | 21t | 12t | 11.0m | 1.5m | 500mm | 940kg |
MRMAXMB50 | 50t | 29t | 16t | 12.0m | 2.0m | 500mm | 1220kg |
MRMAXMB93 | 93t | 53t | 31t | 12.0m | 2.0m | 500mm | 1895kg |
MRMAXMB85 | 85t | 49t | 28t | 16.0m | 2.0m | 500mm | 2915kg |
MRMAXMB76 | 76t | 44t | 25t | 20.0m | 2.0m | 500mm | 3900kg |
MRMAXMB150 | 150t | 90t | n/a | 26.0m | 2.0m | 500mm | 6600kg |
