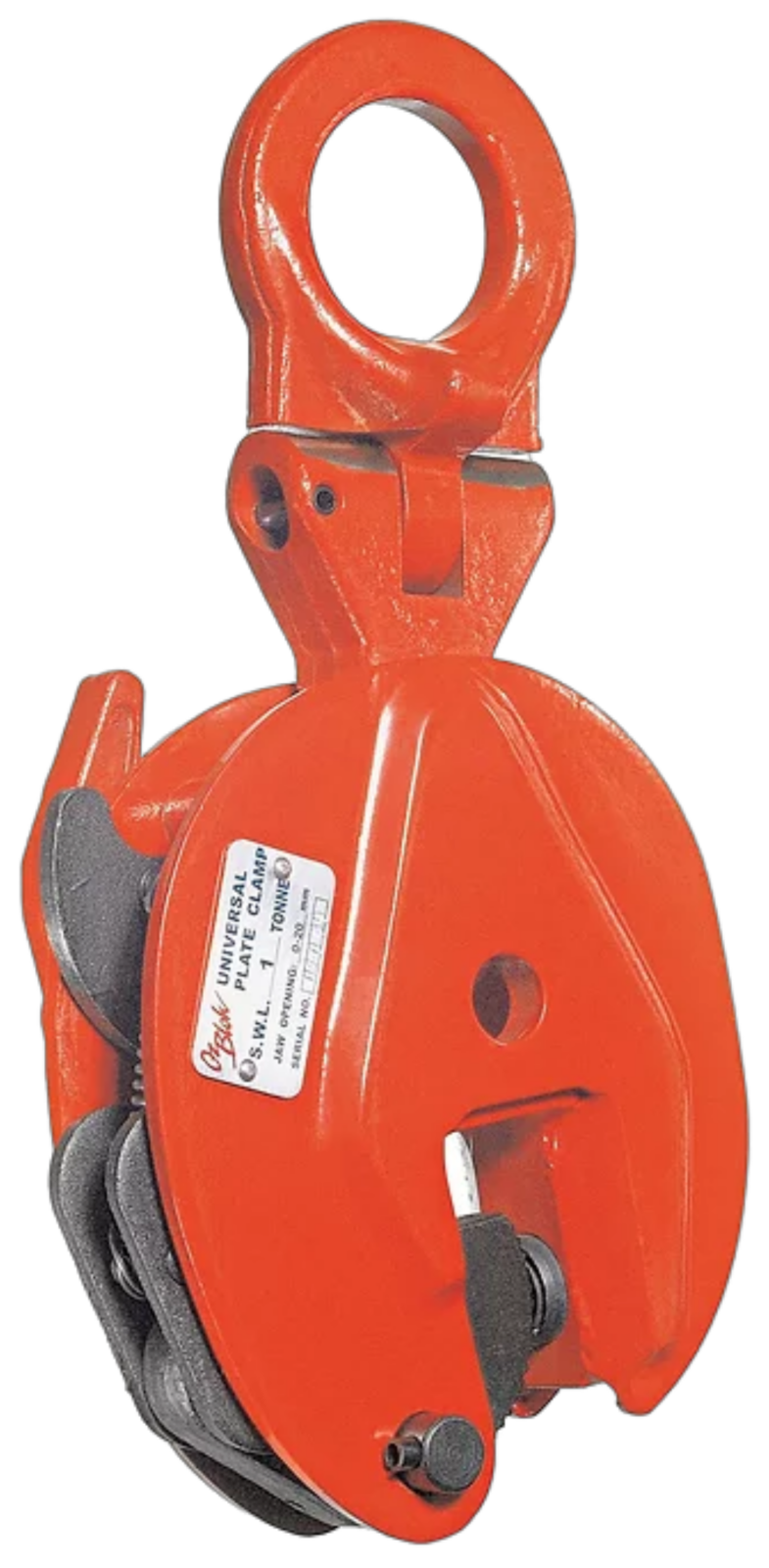

Universal Plate Clamp
- Brand: OzBlok
- Capacity: 0.5t to 5.0t
This versatile, lightweight universal plate clamp is specifically designed to provide a safe and secure method of lifting and transporting heavy steel plates from a horizontal to vertical position, and in any direction.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Durable baked enamel
- Universal pivoting lifting eye
- Strong, all steel construction
- Hardened pressure plate and tongue
- Safety lock in both closed and open position
Industries
- Aeronautical
- Civil
- Construction
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining
- Ports
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | TEST LOAD | MAX. JAW OPENING | NET WEIGHT | VOLUME |
---|---|---|---|---|---|
PCUOZ005 | 0.5t | 7.35kN | 15mm | 2.0kg | 23cm x 5cm x 11.5cm |
PCUOZ010 | 1.0t | 14.7kN | 20mm | 4.8kg | 31cm x 7cm x 16cm |
PCUOZ020 | 2.0t | 29.4kN | 25mm | 6.5kg | 38cm x 8cm x 19cm |
PCUOZ030 | 3.0t | 44.1kN | 30mm | 15.0kg | 45cm x 11cm x 22cm |
PCUOZ050 | 5.0t | 73.5kN | 50mm | 23.0kg | 48cm x 14cm x 27cm |

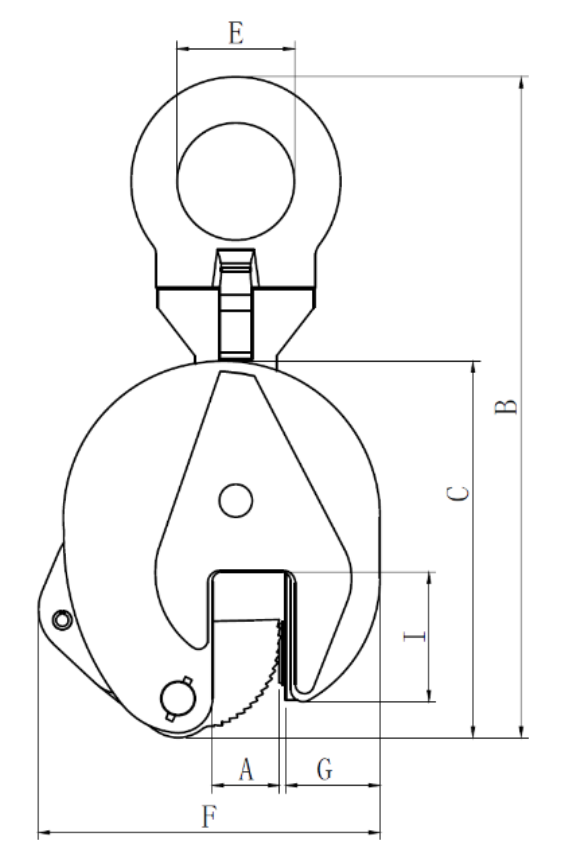

Dimensions
PRODUCT CODE | W.L.L. | A | B | C | D | E | F | G | H |
---|---|---|---|---|---|---|---|---|---|
PCUOZ005 | 0.5t | 30mm | 43mm | 34.5mm | 0mm – 17mm | 103mm | 10mm | 212mm | 36mm |
PCUOZ010 | 1.0t | 48mm | 63mm | 51mm | 0mm – 22mm | 138mm | 12mm | 294mm | 50mm |
PCUOZ020 | 2.0t | 68mm | 76mm | 59mm | 0mm – 27mm | 164mm | 16mm | 370mm | 52mm |
PCUOZ030 | 3.0t | 74mm | 85mm | 56mm | 0mm – 32mm | 193mm | 20mm | 418mm | 78mm |
PCUOZ050 | 5.0t | 80mm | 90mm | 65mm | 0mm – 52mm | 240mm | 22mm | 450mm | 88mm |
