Wire Rope Grip
Wire Rope Grip
- Brand: Austlift

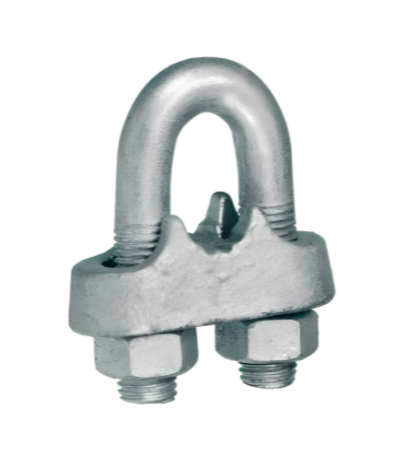

Robust and durable, our Wire Rope Grips are ideal when an eye or loop termination at the end of a wire rope is required. Featuring a hot-dip galvanised finish for corrosion resistance, heavy-duty cast steel saddle with a high-tensile U-bolt and larger nut size to allow greater tightening force and secure clamping, these Wire Rope grips conform to AS 2076 and are stamped with the standard and size. Available in sizes from 6mm to 52mm.
** Not suitable for lifting purposes.
- Australian Standard: AS 2076
Features
Industries
Documents
Features
- Marked with AS and size
- Hot dipped galvanized finish
- Larger nut size for greater tightening force
- Constructed from heavy duty cast steel and hi-tensile metal
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | WIRE SIZE | NET WEIGHT |
|---|---|---|
| AL301506 | 6mm | 0.040kg |
| AL301508 | 8mm | 0.069kg |
| AL301510 | 10mm | 0.120kg |
| AL301512 | 12mm | 0.132kg |
| AL301514 | 13mm – 14mm | 0.223kg |
| AL301516 | 16mm | 0.351kg |
| AL301518 | 18mm | 0.488kg |
| AL301520 | 20mm | 0.980kg |
| AL301522 | 22mm | 1.123kg |
| AL301526 | 26mm | 1.425kg |
| AL301528 | 28mm | 1.560kg |
| AL301532 | 32mm | 1.900kg |
| AL301536 | 36mm | 1.941kg |
| AL301540 | 40mm | 2.070kg |
| AL301552 | 52mm | 4.200kg |

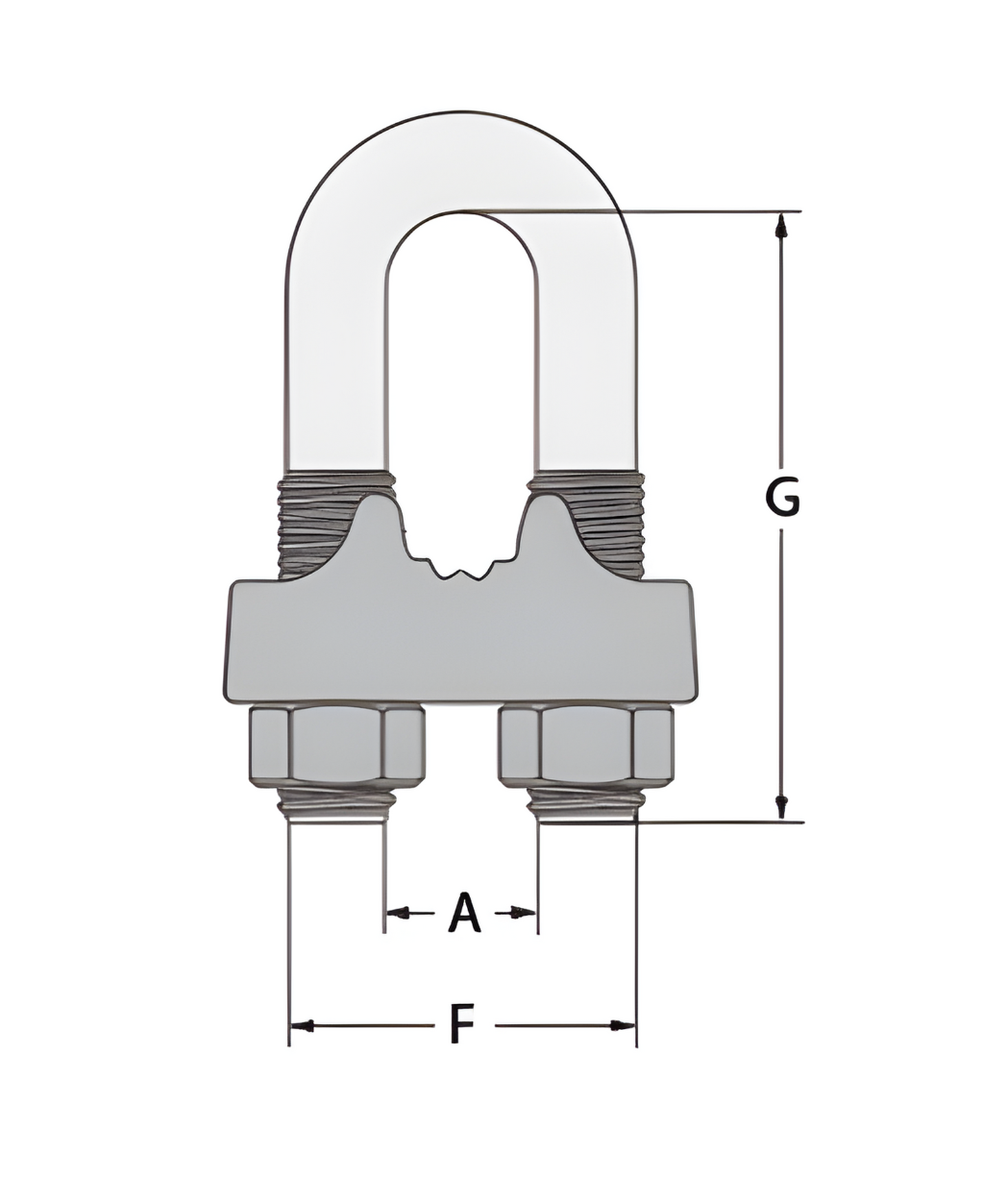

Dimensions
| PRODUCT CODE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| AL301506 | 7mm | 15mm | 20mm | M6 | 8mm | 19mm | 26mm |
| AL301508 | 9mm | 19mm | 22mm | M8 | 9mm | 25mm | 32mm |
| AL301510 | 10mm | 23mm | 27mm | M10 | 11mm | 30mm | 40mm |
| AL301512 | 13mm | 28mm | 32mm | M12 | 16mm | 37mm | 51mm |
| AL301514 | 14mm | 32mm | 38mm | M14 | 16mm | 42mm | 52mm |
| AL301516 | 17mm | 32mm | 41mm | M16 | 17mm | 49mm | 64mm |
| AL301518 | 20mm | 38mm | 47mm | M16 | 19mm | 52mm | 68mm |
| AL301520 | 23mm | 46mm | 58mm | M16 | 24mm | 55mm | 88mm |
| AL301522 | 23mm | 46mm | 58mm | M20 | 24mm | 63mm | 92mm |
| AL301526 | 27.5mm | 50mm | 61mm | M20 | 25mm | 67.5mm | 96mm |
| AL301528 | 29.5mm | 50mm | 66mm | M20 | 27mm | 69.5mm | 104mm |
| AL301532 | 33.5mm | 55mm | 70mm | M20 | 28mm | 73.5mm | 120mm |
| AL301536 | 36.5mm | 55mm | 75mm | M24 | 30mm | 84.5mm | 131mm |
| AL301540 | 41.5mm | 55mm | 90mm | M28 | 34mm | 97.5mm | 145mm |
| AL301552 | 54.5mm | 69mm | 103mm | M32 | 41mm | 118.5mm | 185mm |
