3t & 5t Combined Hoisting Assembly
3t & 5t Combined Hoisting Assembly
- Brand: OzBlok
- Capacity: 3.0t & 5.0t
This compact, robust, integrated hoist and trolley offers theft protection, and is perfect for locations where headroom is constrained. The ergonomic design allows for minimal operator effort to raise the load and enable exact positioning and easy traversing of heavy loads.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Adjustable gear trolley
- Cast steel safety latches
- Factory proof tested to 1.5x W.L.L.
- Super strength zinc plated alloy load chain
- Weather protected automatic Weston brake
Industries
- Construction
- Engineering
- Infrastructure
- Manufacturing
- Mining
- Ports
- Utilities
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | STANDARD LIFT | BEAM WIDTH | MIN. HEADROOM HEIGHT |
|---|---|---|---|---|
| CHCBGTOZ030 | 3.0t | 3m | 74mm – 180mm | 593mm |
| CHCBGTOZ050 | 5.0t | 3m | 98mm – 180mm | 741mm |

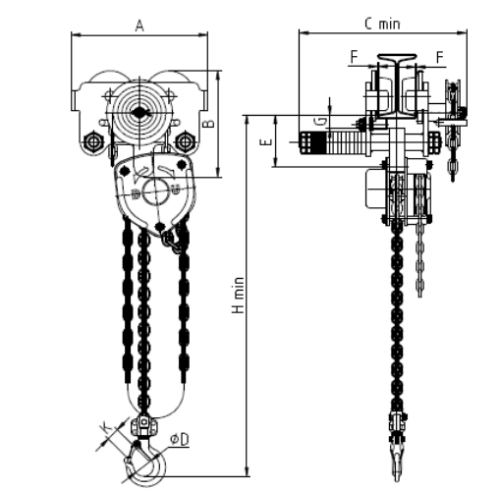

Dimensions
| PRODUCT CODE | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| CHCBGTOZ030 | 363mm | 230mm | 14mm | 304mm | 30mm | 3mm |
| CHCBGTOZ050 | 436mm | 260mm | 18mm | 330mm | 42mm | 3mm |
