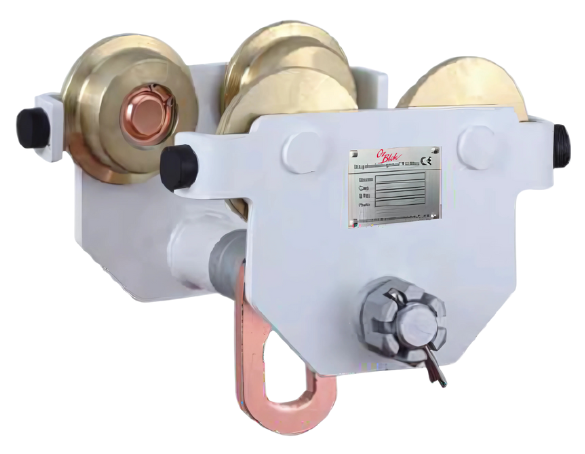

Spark Proof Push Girder Trolley
Spark Proof Push Girder Trolley
- Brand: OzBlok
- Capacity: 0.5t to 10.0t
Robust and versatile, this spark proof push girder trolley is designed to be used in potentially explosive and hazardous environments. With anti-spark coating and excellent corrosion resistance, this push girder trolley provides optimal user safety when manually handling heavy loads during sensitive operations.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- ATEX certified
- Anti-derailment side plates
- Precision ball bearing trolley wheels
- Suitable for use with a manual or powered hoist
- Adjustable to suit a variety of beam flange widths
Industries
- Marine/Oil/Gas
- Offshore
- Subsea
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | FLANGE WIDTH | MIN. TURNING RADIUS | NET WEIGHT |
|---|---|---|---|---|
| PTOZSP005 | 0.5t | 64mm – 203mm | 1.0m | 5.5kg |
| PTOZSP010 | 1.0t | 64mm – 203mm | 1.0m | 9.0kg |
| PTOZSP020 | 2.0t | 88mm – 203mm | 1.3m | 16.0kg |
| PTOZSP030 | 3.0t | 101mm – 203mm | 1.3m | 24.0kg |
| PTOZSP050 | 5.0t | 101mm – 203mm | 1.6m | 41.5kg |
| PTOZSP100 | 10.0t | 125mm – 203mm | 2.5m | 77.0kg |

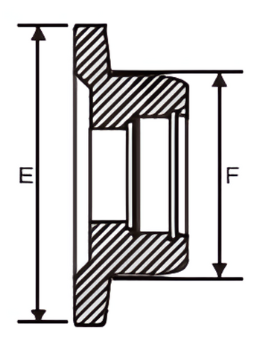

Dimensions
| PRODUCT CODE | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PTOZSP005 | 310mm | 212mm | 195mm | 114mm | 72mm | 52mm | 103mm | 38.5mm | 19mm | 32mm | 57mm | 8mm |
| PTOZSP010 | 323mm | 240mm | 222mm | 127mm | 89mm | 63mm | 107mm | 38.5mm | 19mm | 32mm | 57mm | 10mm |
| PTOZSP020 | 335mm | 270mm | 261mm | 155mm | 101.5mm | 68mm | 135mm | 51mm | 22mm | 38mm | 70mm | 12mm |
| PTOZSP030 | 350mm | 320mm | 318mm | 186mm | 121.5mm | 92mm | 165mm | 68mm | 25mm | 45mm | 80mm | 14mm |
| PTOZSP050 | 375mm | 350mm | 383mm | 231mm | 141.5mm | 98mm | 206mm | 85mm | 32mm | 54mm | 120mm | 18mm |
| PTOZSP100 | 445mm | 430mm | 415mm | 186mm | 175.5mm | 133mm | 195mm | 114m | 48.5mm | 85mm | 285mm | 20mm |
