Entertainment Push Girder Trolley
Entertainment Push Girder Trolley
- Brand: OzBlok
- Capacity: 1.0t
Manufactured specifically for use in the entertainment industry, this light weight, adjustable all steel push girder trolley provides a safe and simple suspension point that can be moved along variable width R.S.J's and universal beams in a controlled manner, providing added flexibility and safety when moving heavy loads horizontally.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Anti-derailment plates
- Built in bumper guards
- Drop forged screw type adjuster
- Precision ball bearing trolley wheels
- Durable baked black enamel paint protection
Industries
- Entertainment
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT | MIN. RADIUS CURVE | ADJUSTABLE BEAM WIDTH |
|---|---|---|---|---|
| PTOZ010-BLK | 1.0t | 7.95kg | 0.8m | 64mm – 210mm |

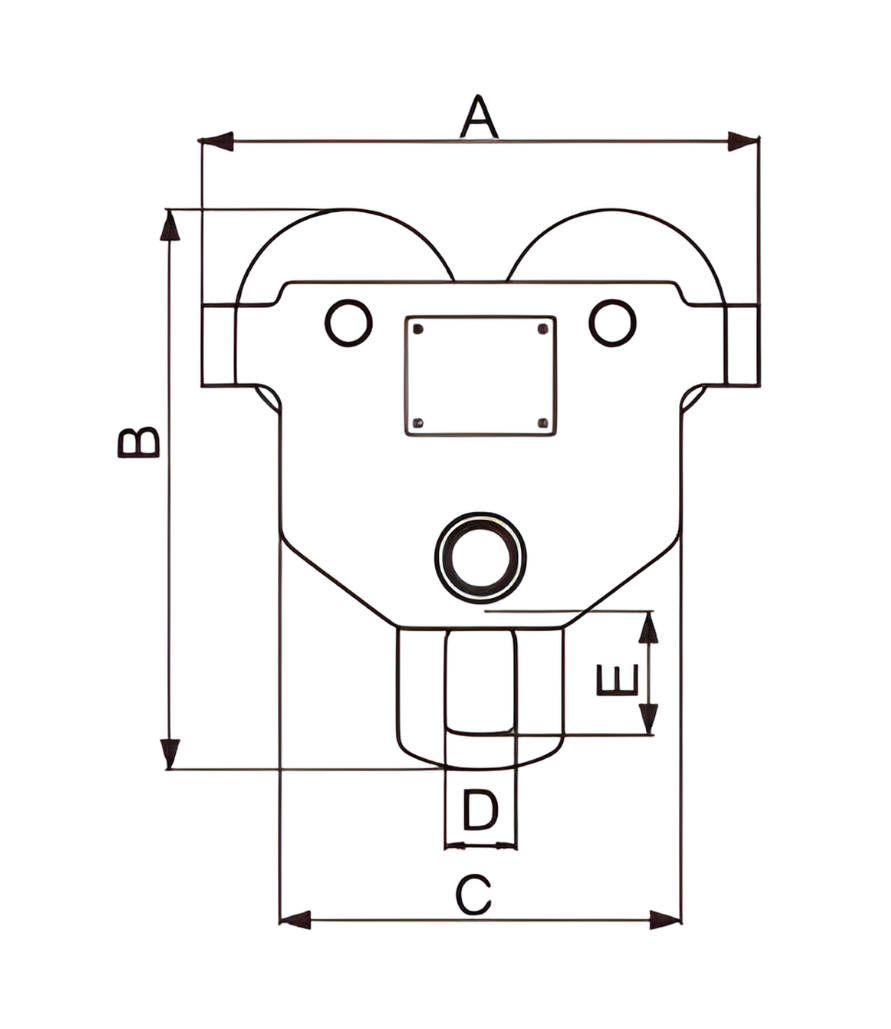

Dimensions
| PRODUCT CODE | W.L.L. | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| PTOZ010-BLK | 1.0t | 212.00mm | 92.00mm | 199.50mm | 34.00mm | 24.00mm | 15.00mm | 210.00mm | 323.00mm |
