400kg Round Material Lifting Magnet
400kg Round Material Lifting Magnet
- Brand: Townley
- Capacity: 0.40t

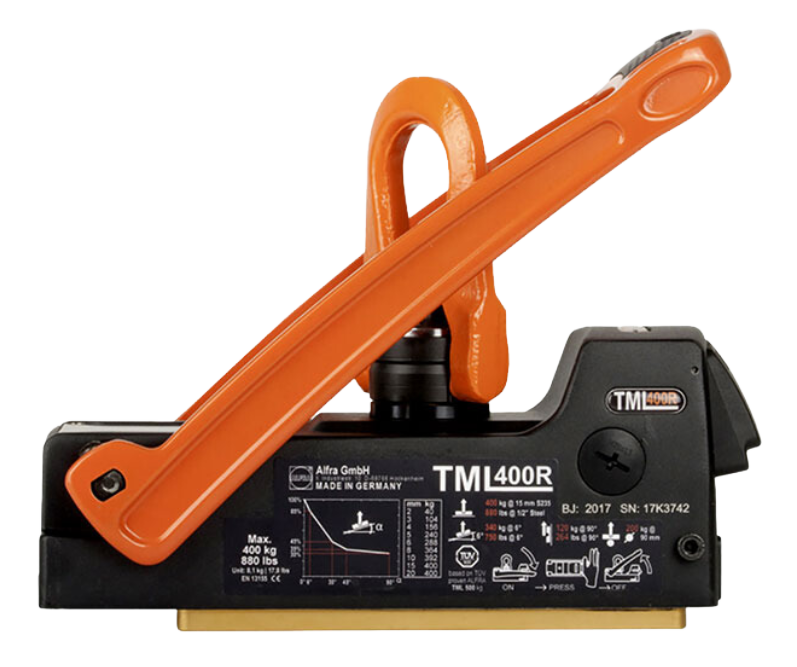

The Alfra TML 400R hand lifting magnet for pipes, offers a secure and efficient solution for handling, moving or lifting round material with a lifting capacity of 400kg on thin walled materials, operable from just 2mm thickness. Featuring a built-in prism for attaching pipes and curved surfaces of 50mm to 400mm in diameter, a wear-resistant, hardened steel contact surface with TiN-coating for extended lifespan and easy one-handed operation, with 360° rotable and 180° pivotable load swivel, the Alfra TML400-R is a powerful and versatile tool ideal for various applications.
Features
Industries
Documents
Features
- 3:1 safety factor
- 400kg load bearing capacity
- 360° rotable and 180° pivotable load swivel
- Built-in prism for attachment to pipes and curved surfaces
Industries
- Civil
- Construction
- Engineering
- Infrastructure
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY | BREAKAWAY FORCE | MIN. MATERIAL THICKNESS | NET WEIGHT |
|---|---|---|---|---|
| TNTML400R | 400kg | 1200kg on 15mm steel S235 | 2mm | 8.2kg |
Dimensions
| PRODUCT CODE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| TNTML400R | 295mm | 118mm | 216mm |
