90kg Round Material Lifting Magnet
90kg Round Material Lifting Magnet
- Brand: Townley
- Capacity: 0.09t

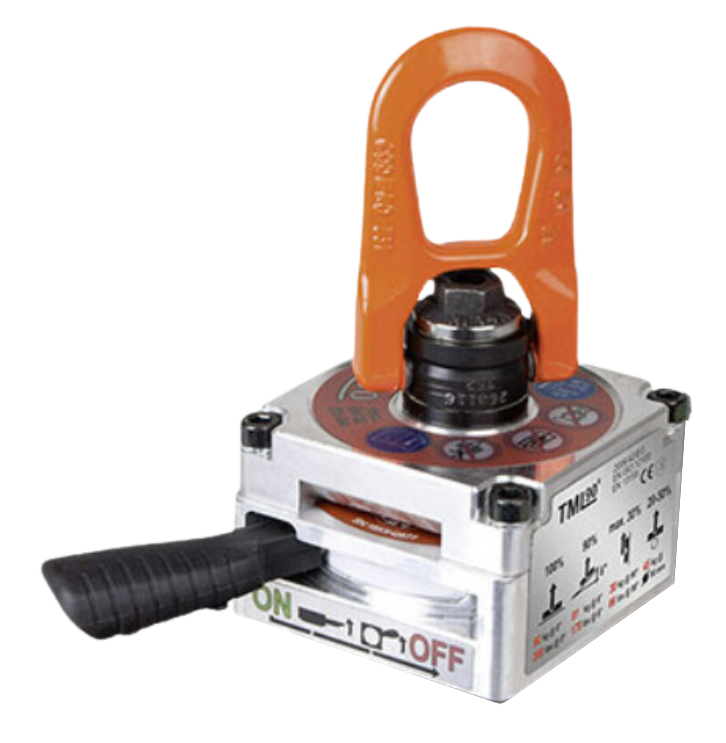

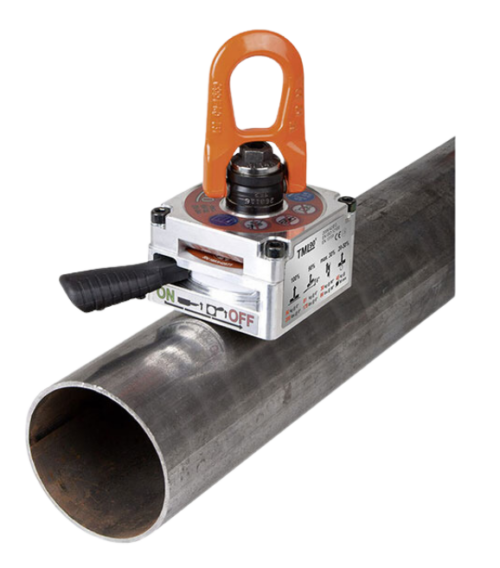

The Alfra TML-90-R hand lifting magnet for pipes, offers a secure and efficient solution for handling, moving or lifting round material with a lifting capacity of 90kg on thin walled materials, operable from just 1mm thickness. Featuring a built-in prism for attaching pipes and curved surfaces of 25mm to 200mm in diameter, a wear-resistant, hardened steel contact surface with TiN-coating for extended lifespan and easy one-handed operation, with 360° rotable and 180° pivotable load swivel, the Alfra TML-90-R is a powerful and versatile tool ideal for various applications.
Features
Industries
Documents
Features
- 3:1 safety factor
- 90kg load bearing capacity
- 360° rotable and 180° pivotable load swivel
- Built-in prism for attachment to pipes and curved surfaces
Industries
- Civil
- Construction
- Engineering
- Infrastructure
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY | BREAKAWAY FORCE | MIN. MATERIAL THICKNESS | NET WEIGHT |
|---|---|---|---|---|
| TNTML90R | 90kg | 270kg on 6mm steel S235 | 1mm | 1.8kg |
Dimensions
| PRODUCT CODE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| TNTML90R | 82.5mm | 80.0mm | 88.0mm |
