1000kg Flat Material Lifting Magnet
- Brand: Townley
- Capacity: 1.0t

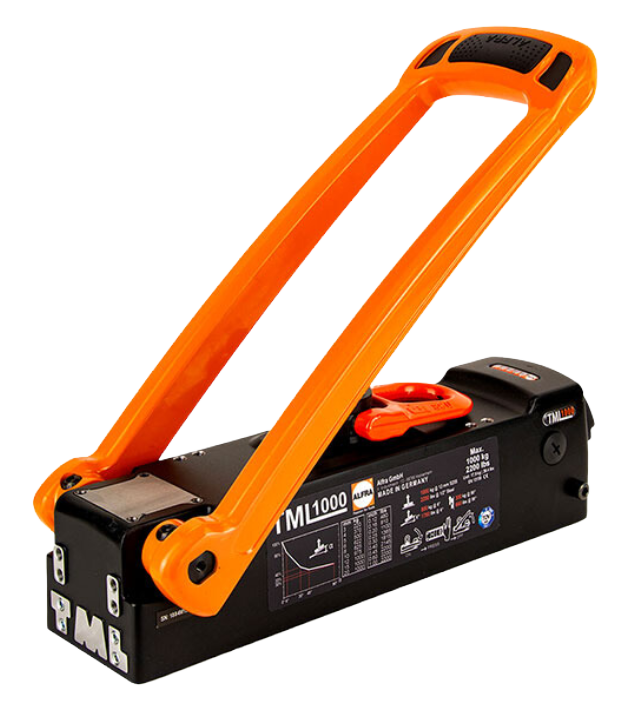

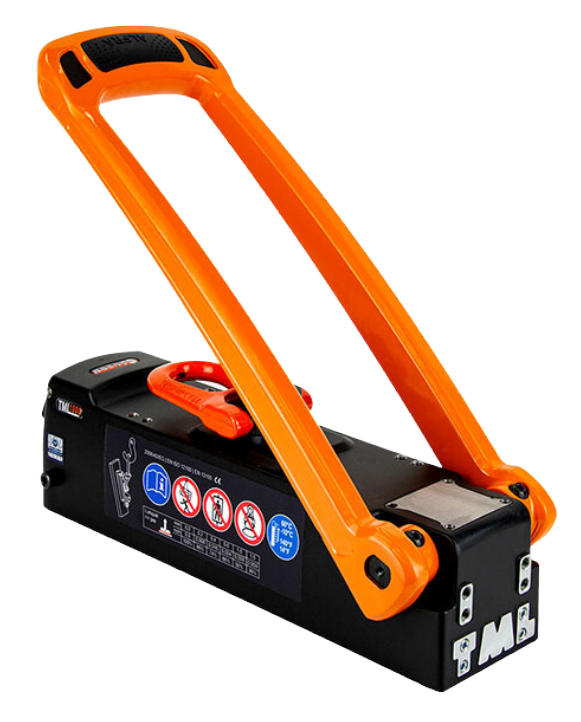

With an ergonomic lever that allows for easy activation, the Alfra TML1000 lifting magnet provides a safe and secure solution for handling, lifting or moving flat steel. With a 3:1 safety factor, the Alfra TML1000 lifting magnet boasts a load bearing capacity of 1000kg on 12mm thick steel (S235) and can lift sheets as thin as 2mm. A wear-resistant magnetic contact area, constructed from hardened steel with a TiN coating, guarantees durability and minimises damage to both the magnet and the lifted material, whilst the 360° rotating and 180° pivoting load swivel ensures versatility even under full load.
Features
Industries
Documents
Features
- 3:1 safety factor
- Ergonomic activation lever
- 1.0t load bearing capacity
- 360° rotable and 180° pivotable load swivel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
Specifications
Dimensions
Specifications
PRODUCT CODE | CAPACITY | BREAKAWAY FORCE | MIN. MATERIAL THICKNESS | MAGNETIC CONTACT AREA | NET WEIGHT |
---|---|---|---|---|---|
TNTML100 | 1000kg | 3400kg on 12mm steel S235 | 2mm | 387mm x 92mm | 18.0kg |

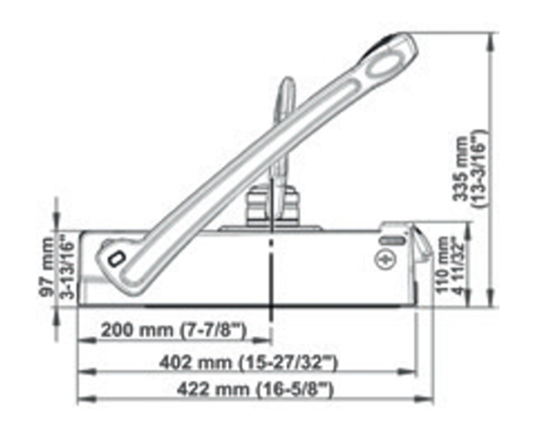

Dimensions
PRODUCT CODE | LENGTH | WIDTH | HEIGHT |
---|---|---|---|
TNTML1000 | 470mm | 154mm | 335mm |
