70kg Magnetic Clamp
70kg Magnetic Clamp
- Brand: Townley
- Capacity: 0.07t

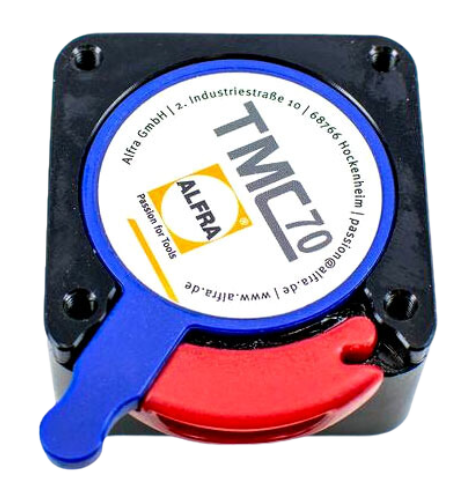

The TMC 70 magnetic clamp has a holding force of 70kg, and offers a secure and efficient solution when welding seams, welding at an angle and fixing intricate metal parts at just 1mm thick. Featuring M5 and M6 connection threads for the easy attachment of accessories, plus a TiN coated wear resistant magnetic contact area for increased durability, the TMC 70 is a small yet versatile magnetic clamp ideal for various applications.
Features
Industries
Documents
Features
- 70kg holding force
- M5 and M6 connection threads for accessory attachment
- TiN-Coated wear resistant magnetic contact area for increased durability
Industries
- Civil
- Construction
- Engineering
- Infrastructure
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY | BREAKAWAY FORCE | MIN. MATERIAL THICKNESS | NET WEIGHT |
|---|---|---|---|---|
| TNTMC70 | 70kg | 70kg on 3mm S235 steel | 1mm | 0.29kg |

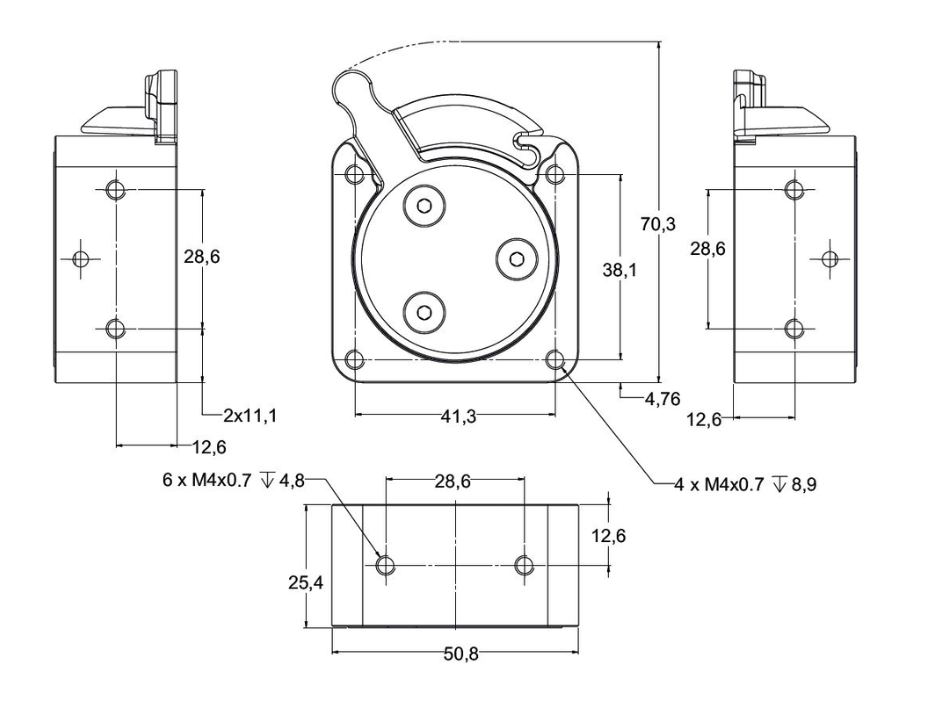

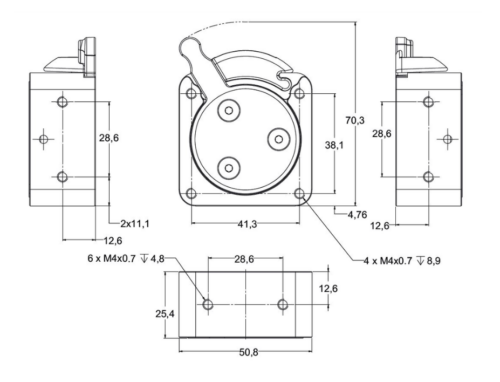

Dimensions
| PRODUCT CODE | LENGTH | WIDTH |
|---|---|---|
| TNTMC70 | 71mm | 51mm |
