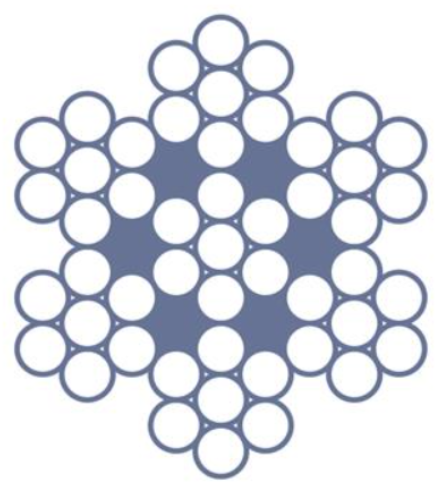

7×7 WSC G2070 Wire Rope
7×7 WSC G2070 Wire Rope
Our 7x7 steel core galvanised wire ropes have a semi-flexible characteristic and suitable for irrigation wires, guy wires catenary or general purpose uses wherever stiff rope is required for the application. Available by the metre or reel.
- Australian Standard: AS 3569
Features
Industries
Documents
Features
- Semi-flexible design
- Minimal stretch co-efficient
- Manufactured from Grade 2070 galvanised steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | GRADE | MBS | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| AL878012 | 1.2mm | 2070 | 1.09kN | 1000m | 6.2kg |
| AL878030 | 3.0mm | 2070 | 6.85kN | 1000m | 35.0kg |
| AL878040 | 4.0mm | 2070 | 12.90kN | 1000m | 63.0kg |
| AL878043 | 4.0mm | 2070 | 12.90kN | 3000m | 189.0kg |
| AL878050 | 5.0mm | 2070 | 18.80kN | 1000m | 99.0kg |
| AL878053 | 5.0mm | 2070 | 18.80kN | 3000m | 294.0kg |
| AL878060 | 6.0mm | 2070 | 27.0kN | 1000m | 143.0kg |
| AL878062 | 6.0mm | 2070 | 27.0kN | 2000m | 286.0kg |
| AL878063 | 6.0mm | 2070 | 27.0kN | 3000m | 429.0kg |
| AL878070 | 7.0mm | 2070 | 37.0kN | 1000m | 197.0kg |
| AL878072 | 7.0mm | 2070 | 37.0kN | 2000m | 394.0kg |
| AL878073 | 7.0mm | 2070 | 37.0kN | 3000m | 591.kg |
| AL878080 | 8.0mm | 2070 | 47.4kN | 1000m | 252.0kg |
| AL878082 | 8.0mm | 2070 | 47.4kN | 2000m | 504.0kg |
| AL878083 | 8.0mm | 2070 | 47.4kN | 3000m | 756.0kg |
| AL878090 | 9.0mm | 2070 | 60.0kN | 1000m | 320.0kg |
| AL878092 | 9.0mm | 2070 | 60.0kN | 2000m | 640.0kg |
| AL878093 | 9.0mm | 2070 | 60.0kN | 3000m | 960.0kg |
| AL878100 | 10.0mm | 2070 | 74.0kN | 1000m | 392.0kg |
| AL878125 | 12.0mm | 2070 | 106.0kN | 500m | 283.0kg |
| AL878120 | 12.0mm | 2070 | 106.0kN | 1000m | 576.0kg |
| AL878160 | 16.0mm | 2070 | 205.0kN | 1000m | 1010.0kg |
