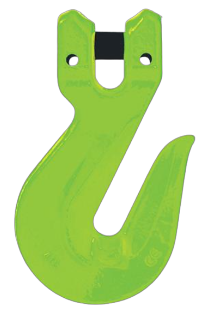

G100 Clevis Grab Hook
- Capacity: 1.4t to 19.0t
Designed for ease of connection directly to chain, our GC type G100 clevis grab hooks provide the flexibility to shorten chain leg in a chain sling assembly, and may also be used for back-hooking. These grab hooks are supplied with supporting lugs to ensure there is no reduction of the working load limit.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- 25% higher working load limit than G80
- Individual test certificates available upon request
- Manufactured from G100 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. LIFTING | SIZE | NET WEIGHT |
---|---|---|---|
CGHG100-06 | 1.4t | 6mm | 0.22kg |
CGHG100-08 | 2.5t | 8mm | 0.34kg |
CGHG100-10 | 4.0t | 10mm | 0.82kg |
CGHG100-13 | 6.7t | 13mm | 1.75kg |
CGHG100-16 | 10.0t | 16mm | 2.88kg |
CGHG100-20 | 16.0t | 20mm | 4.84kg |
CGHG100-22 | 19.0t | 22mm | 8.30kg |
CGHG100-26 | 26.5t | 26mm | 13.72kg |
CGHG100-32 | 40.0t | 32mm | 25.50kg |

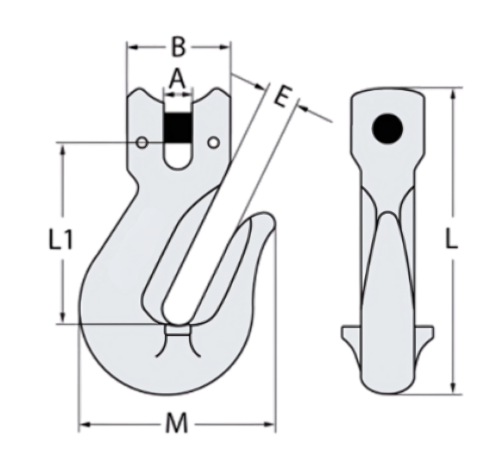

Dimensions
PRODUCT CODE | A | B | E | L | L1 | M |
---|---|---|---|---|---|---|
CGHG100-06 | 7.5mm | 32.0mm | 8.0mm | 77.3mm | 44.5mm | 46.5mm |
CGHG100-08 | 9.5mm | 36.0mm | 11.0mm | 93.0mm | 53.0mm | 54.0mm |
CGHG100-10 | 12.5mm | 46.0mm | 13.5mm | 127.0mm | 73.0mm | 72.0mm |
CGHG100-13 | 15.0mm | 59.0mm | 15.0mm | 164.0mm | 92.0mm | 96.0mm |
CGHG100-16 | 18.5mm | 70.0mm | 19.0mm | 188.0mm | 103.0mm | 115.0mm |
CGHG100-20 | 24.0mm | 85.0mm | 25.0mm | 223.0mm | 123.0mm | 145.0mm |
CGHG100-22 | 27.0mm | 100.0mm | 27.0mm | 260.0mm | 141.0mm | 159.0mm |
CGHG100-26 | 30.0mm | 110.0mm | 34.0mm | 320.0mm | 187.0mm | 190.0mm |
CGHG100-32 | 35.0mm | 150.0mm | 41.0mm | 378.0mm | 213.0mm | 229.0mm |
