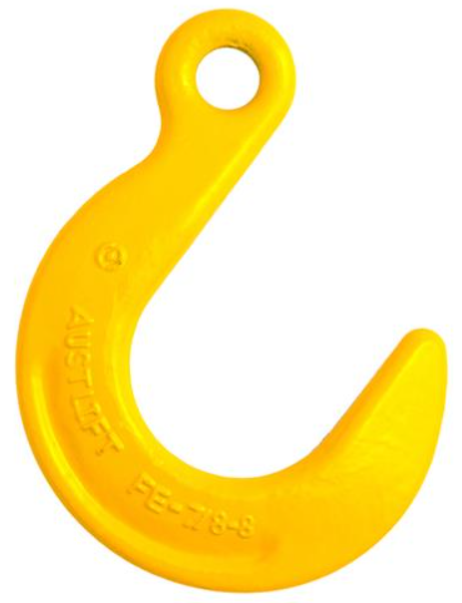

G80 Foundry Hook Eye
G80 Foundry Hook Eye
- Capacity: 2.0t
The G80 Eye Foundry Hook is specifically designed for heavy-duty lifting foundry applications, and is ideal when a wide mouth opening is required for bulky attachment points. It is not intended for general chain sling applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Large mouth opening
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL107108 | 2t | 7/8mm | 1.09kg |
Dimensions
| PRODUCT CODE | A | E | Ø | H | M | N | L | L1 |
|---|---|---|---|---|---|---|---|---|
| AL107108 | 39mm | 63.5mm | 18mm | 31mm | 120mm | 25.4mm | 163mm | 121mm |
