G80 Foundry Hook Clevis
- Brand: Austlift
- Capacity: 2.0t to 3.2t

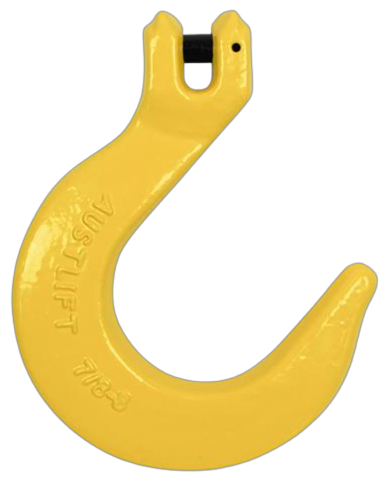

Austlift foundry hooks are a special purpose hook featuring a large mouth opening. The clevis design ensures effortless connection to the chain, making them ideal for lifting pipes and fulfilling various foundry applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Large mouth opening
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
---|---|---|---|
AL107008 | 2.0t | 7/8mm | 1.1kg |
AL107010 | 3.2t | 10mm | 2.5kg |

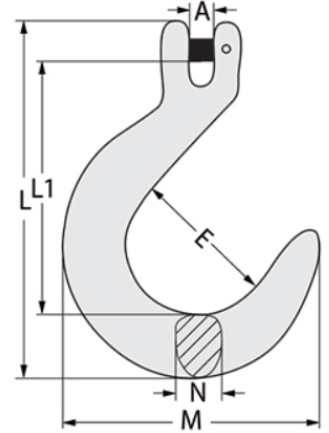

Dimensions
PRODUCT CODE | A | E | M | N | L | L1 |
---|---|---|---|---|---|---|
AL107008 | 9.5mm | 63.4mm | 128mm | 18mm | 161mm | 110mm |
AL107010 | 13.0mm | 76.9mm | 156mm | 32mm | 199m | 137mm |
