G80 Clutch Choker
G80 Clutch Choker
- Brand: Austlift
- Capacity: 2.0t

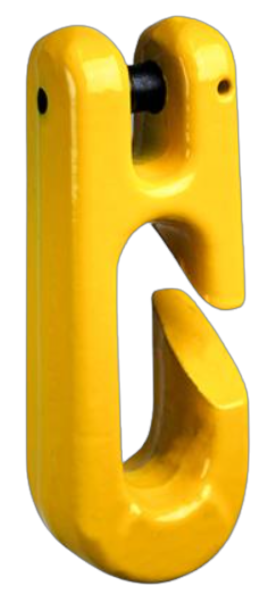

Our clevis choker hooks are a special purpose hook suitable for choke hitch applications. The narrow throat opening prevents the chain from being dislodged. The clevis allows easy connection to chain.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL103420 | 2.0t | 8mm | 0.68kg |

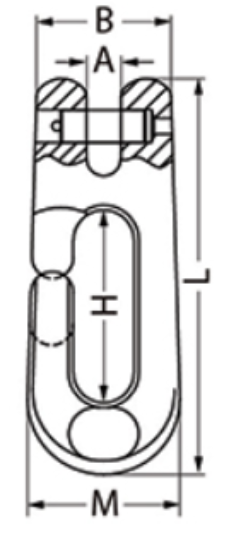

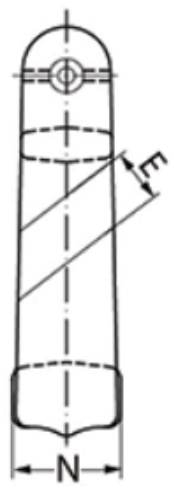

Dimensions
| PRODUCT CODE | A | B | H | M | N | E | L |
|---|---|---|---|---|---|---|---|
| AL103420 | 10.5mm | 41mm | 60mm | 46.5mm | 32mm | 16mm | 123mm |
