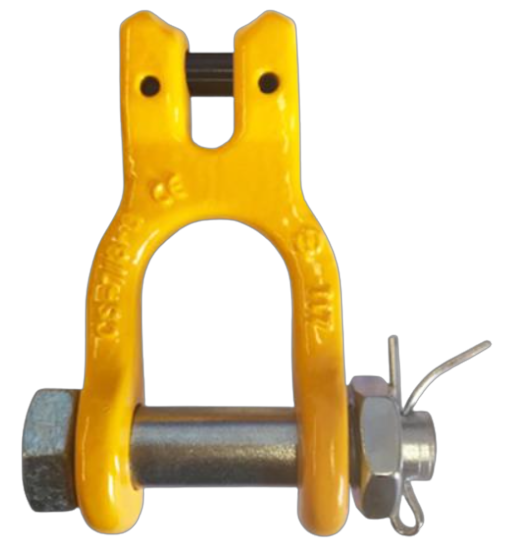

G80 Clevis Shackle
G80 Clevis Shackle
- Brand: Austlift
- Capacity: 2.0t to 8.0t
Featuring a removable clevis pin, our G80 clevis shackles are designed to serve as a terminal end, allowing for direct connection to the chain at the clevis end. It ensures secure and reliable linking, providing a dependable solution for lifting and rigging applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL104308 | 2.0t | 7/8mm | 0.5kg |
| AL104310 | 3.2t | 10mm | 0.9kg |
| AL104313 | 5.3t | 13mm | 1.6kg |
| AL104316 | 8.0t | 16mm | 2.7kg |
Dimensions
| PRODUCT CODE | A | B | C | D | E | F | L | Ø |
|---|---|---|---|---|---|---|---|---|
| AL104308 | 31mm | 51mm | 36.3mm | 9.0mm | 20mm | 36.0mm | 103.5mm | 16.0mm |
| AL104310 | 34mm | 62mm | 48.0mm | 12.5mm | 25mm | 46.5mm | 130.7mm | 20.0mm |
| AL104313 | 49mm | 83mm | 64.0mm | 15.0mm | 31mm | 59.0mm | 160.0mm | 22.0mm |
| AL104316 | 58mm | 95mm | 69.5mm | 19.0mm | 40mm | 70.0mm | 190.5mm | 28.5mm |
