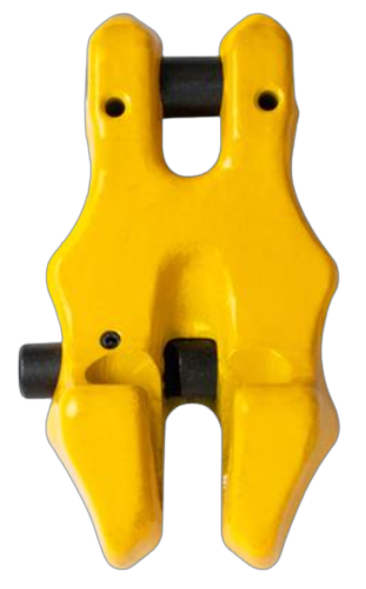

G80 Clevis Clutch w Safety Pin
G80 Clevis Clutch w Safety Pin
- Brand: Austlift
- Capacity: 2.0t to 5.3t
Our G80 clevis (with safety pin) lockable clutches provide the benefit of adjusting the length of a chain sling without compromising its working load limit. The clevis design enables effortless connection to the chain. Not recommended for use as bottom fitting of sling for back-hooking and reeving applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL102108S | 2.0t | 7/8mm | 0.41kg |
| AL102110S | 3.2t | 10mm | 0.75kg |
| AL102113S | 5.3t | 13mm | 1.67kg |
Dimensions
| PRODUCT CODE | A | B | C | D | M | N | P | L |
|---|---|---|---|---|---|---|---|---|
| AL102108S | 50mm | 9.5mm | 33mm | 9.5mm | 33mm | 23mm | 9.2mm | 92mm |
| AL102110S | 60mm | 12.5mm | 43mm | 12.5mm | 40mm | 26mm | 13.3mm | 115mm |
| AL102113S | 79mm | 15.0mm | 55mm | 12.0mm | 54mm | 34mm | 163.0mm | 149mm |
