G80 Claw Hook w Safety Pin SC
G80 Claw Hook w Safety Pin SC
- Brand: Austlift
- Capacity: 3.2t

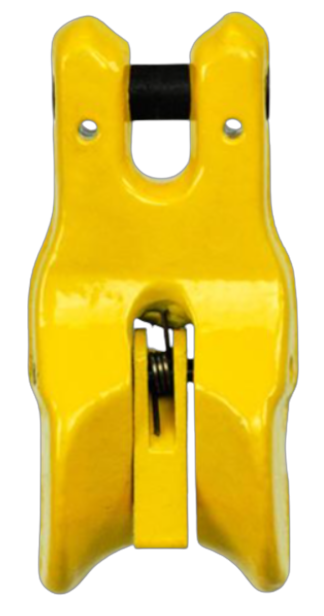

Our G80 claw hook (with safety pin) lockable clutches, provide the advantage of chain sling shortening without compromising the working load limit. The clevis design enables effortless chain connection, whilst the inclusion of a chain locking device enhances safety by preventing the chain from dislodging from the hook.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL102140 | 3.2t | 10mm | 0.99kg |
Dimensions
| PRODUCT CODE | A | B | E | M | N | H | L |
|---|---|---|---|---|---|---|---|
| AL102140 | 12mm | 44.5mm | 14mm | 56mm | 12mm | 58mm | 121mm |
