G80 Multi Link
G80 Multi Link
- Brand: Austlift
- Capacity: 1.9t to 31.5t

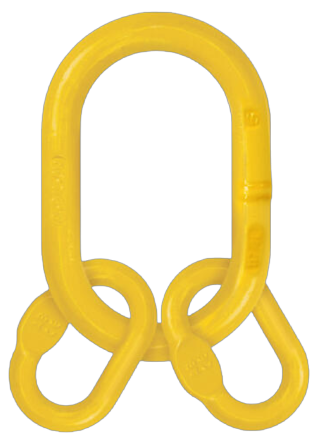

Our G80 multi link rings feature a large central ring and two intermediate links, each with the same lifting capacity. Specifically designed to accommodate chain sling or wire rope sling applications with two, three, or four legs, these versatile multi head rings provide flexibility for a wide range of lifting configurations.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- 4 x W.L.L. breaking force
- Fatigue tested > 20,000 times
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. 0°-45° | W.L.L. 45°-60° | SIZE | NET WEIGHT |
|---|---|---|---|---|
| MULTIG080-06 | 2.36t | 1.90t | 6mm | 1.18kg |
| MULTIG080-08 | 4.25t | 3.50t | 7/8mm | 2.20kg |
| MULTIG080-10 | 6.70t | 5.50t | 10mm | 3.40kg |
| MULTIG080-13 | 11.20t | 9.20t | 13mm | 6.10kg |
| MULTIG080-16 | 17.00t | 13.80t | 16mm | 9.98kg |
| MULTIG080-20 | 26.50t | 21.60t | 20mm | 22.50kg |
| MULTIG080-22 | 31.50t | 26.00t | 22mm | 25.20kg |
| MULTIG080-26 | 45.00t | 36.90t | 26mm | 36.30kg |
| MULTIG080-32 | 67.00t | 54.94t | 32mm | 66.46kg |
Dimensions
| PRODUCT CODE | A | B | D | a | b | d |
|---|---|---|---|---|---|---|
| MULTIG080-06 | 135mm | 75mm | 18mm | 54mm | 25mm | 13mm |
| MULTIG080-08 | 160mm | 90mm | 22mm | 70mm | 34mm | 16mm |
| MULTIG080-10 | 180mm | 100mm | 26mm | 85mm | 40mm | 18mm |
| MULTIG080-13 | 200mm | 110mm | 32mm | 115mm | 50mm | 22mm |
| MULTIG080-16 | 260mm | 140mm | 36mm | 140mm | 65mm | 26mm |
| MULTIG080-20 | 350mm | 190mm | 50mm | 180mm | 100mm | 32mm |
| MULTIG080-22 | 350mm | 190mm | 50mm | 180mm | 100mm | 36mm |
| MULTIG080-26 | 406mm | 203mm | 57mm | 180mm | 100mm | 40mm |
| MULTIG080-32 | 460mm | 250mm | 72mm | 200mm | 110mm | 50mm |
