Compact Rope Hoist
Compact Rope Hoist
- Brand: CWS Pacific
- Capacity: 0.08t to 0.30t
This compact wire rope hoist is suited for a wide range of applications such as warehouses, construction sites and factories. Due to its compact and lightweight design, it is perfect for when easy installation and quick use is needed.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Automatic upper limit switch
- 240V / single phase power supply
- Mechanical brake for instant and safe braking
- Lower limit switch to stop motor if rope is under wound
Industries
- Civil
- Construction
- Engineering
- Entertainment
- Hire
- Lifts/Elevators
- Ports
Documents
Specifications

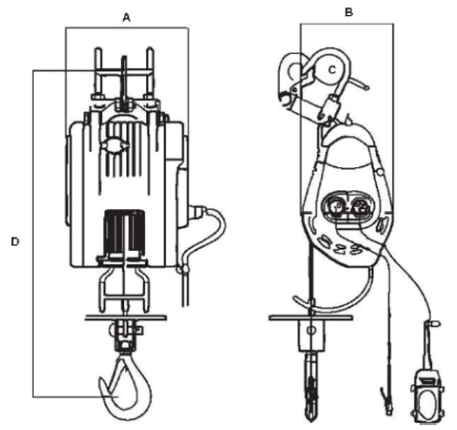

Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SPEED | OUTPUT | HEIGHT OF LIFT | WIRE ROPE Ø | NET WEIGHT |
|---|---|---|---|---|---|---|
| PHCWS080 | 0.08t | 30 m/min | 0.8kW | 35m | 3.3mm x 36m | 18kg |
| PHCSW160 | 0.16t | 22 m/min | 1.2kW | 40m | 4.0mm x 41m | 25kg |
| PHCWS230 | 0.23t | 14 m/min | 1.3kW | 24m | 5.0mm x 25m | 26kg |
| PHCWS300 | 0.30t | 13 m/min | 1.5kW | 24m | 4.8mm x 25m | 28kg |
