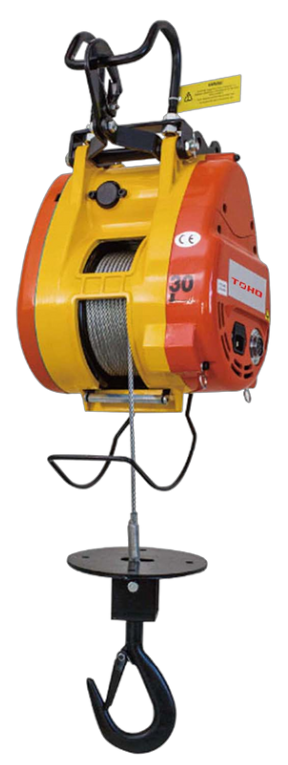

Compact Rope Hoist
Compact Rope Hoist
- Brand: Toho
- Capacity: 0.25t to 0.50t
Ideal for construction sites, this versatile builder's hoist is specifically designed to hang from scaffold tubing, allowing for efficient lifting of materials between different levels on a construction site. Its compact and portable design makes it particularly well suited for use in tight or constrained spaces. Optional remote control units available.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- 30m lift
- Auto stop feature
- Scaffolding safety latch
- 240V, 3 pin plug power supply
Industries
- Civil
- Construction
- Engineering
- Hire
- Ports
Specifications

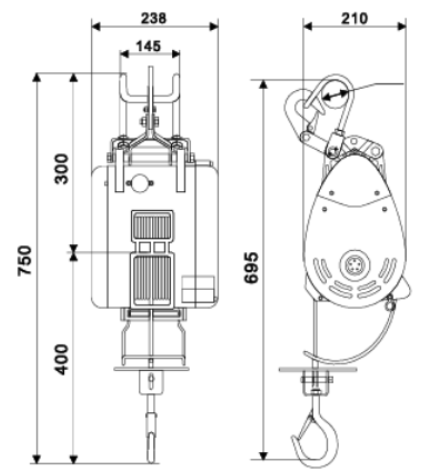

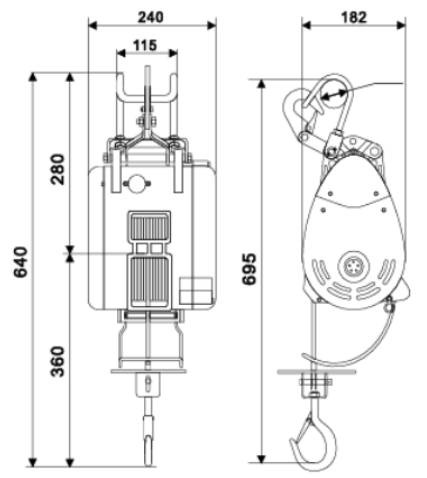

Dimensions
Specifications
| PRODUCT CODE | W.L.L. | MOTOR | DUTY CYCLE | ROPE Ø | LIFTING SPEED | LIFT | NET WEIGHT |
|---|---|---|---|---|---|---|---|
| TOTBH250 | 0.25t | 1500w | 0.25 | 5mm | 19m/min | 30m | 22kg |
| TOTBH360 | 0.36t | 1600w | 0.25 | 5mm | 13m/min | 30m | 26kg |
| TOTBH500 | 0.50t | 1600w | 0.25 | 6mm | 13m/min | 30m | 30kg |
